'LEFT JOIN'vs'LEFT OUTER JOIN'

13

针对'LEFTJOIN'vs'LEFTOUTERJOIN'这个问题，本篇文章进行了详细的解答，同时本文还将给你拓展(转载)Mysql----Join用法(Innerjoin,Leftjoin,Righ

针对'LEFT JOIN'vs'LEFT OUTER JOIN'这个问题，本篇文章进行了详细的解答，同时本文还将给你拓展(转载) Mysql----Join用法(Inner join,Left join,Right join, Cross join, Union模拟Full join)及---性能优化、Apache beam Join.leftOuterJoin，如何传递空白TableRow？、Hive_LEFT SEMI JOIN / LEFT OUTER JOIN 与 (IN / NOT IN), (EXISTS / NOT EXISTS ) 分析、Hive的join操作，left join,right join,inner join等相关知识，希望可以帮助到你。

本文目录一览：

'LEFT JOIN'vs'LEFT OUTER JOIN'

'LEFT JOIN'vs'LEFT OUTER JOIN'

我知道确实没有什么区别，但是“ LEFT JOIN”是ANSI形式，还是有任何RDBMS都将导致“ LEFT JOIN”失败并需要“ LEFT OUTER
JOIN”。[我在这里问是为了节省一些点击次数，填写表格等，以获取正确的ANSI标准！]

答案1

小编典典

根据ANSI规范，[OUTER]是可选的（92，但是我敢肯定以后的版本也会覆盖它）。

当然，您假设每个SQL产品都是ANSI兼容的。对于联接，它们可能是..

(转载) Mysql----Join用法(Inner join,Left join,Right join, Cross join, Union模拟Full join)及---性能优化

(转载) Mysql----Join用法(Inner join,Left join,Right join, Cross join, Union模拟Full join)及---性能优化

http://blog.csdn.net/ochangwen/article/details/52346610



前期数据准备

CREATE TABLE  atable(
aID int( 1 ) AUTO_INCREMENT PRIMARY KEY ,
aNum char( 20 ));

CREATE TABLE btable(
bID int( 1 ) NOT NULL AUTO_INCREMENT PRIMARY KEY ,
bName char( 20 ) );

INSERT INTO atable
VALUES ( 1, ''a20050111'' ) , ( 2, ''a20050112'' ) , ( 3, ''a20050113'' ) , ( 4, ''a20050114'' ) , ( 5, ''a20050115'' ) ;

INSERT INTO btable
VALUES ( 1, '' 2006032401'' ) , ( 2, ''2006032402'' ) , ( 3, ''2006032403'' ) , ( 4, ''2006032404'' ) , ( 8, ''2006032408'' ) ;

-------------------------------------------------------------------------------------------

atable:左表；btable:右表。
JOIN 按照功能大致分为如下三类：
  1).inner join(内连接,或等值连接)：取得两个表中存在连接匹配关系的记录。
  2).left  join(左连接)：取得左表（atable）完全记录，即是右表（btable）并无对应匹配记录。
  3).right join(右连接)：与 LEFT JOIN 相反，取得右表（btable）完全记录，即是左表（atable）并无匹配对应记录。
注意：mysql不支持Full join,不过可以通过 union 关键字来合并 left join 与 right join来模拟full join.

一、Inner join

  内连接，也叫等值连接，inner join产生同时符合A和B的一组数据。
  接下来给出一个列子用于解释下面几种分类。如下两个表(A,B)


  1. mysql> select * from atable  inner join btable  on atable.aid=btable.bid;
  2. +-----+-----------+-----+-------------+
  3. | aID | aNum      | bID | bName       |
  4. +-----+-----------+-----+-------------+
  5. |   1 | a20050111 |   1 |  2006032401 |
  6. |   2 | a20050112 |   2 | 2006032402  |
  7. |   3 | a20050113 |   3 | 2006032403  |
  8. |   4 | a20050114 |   4 | 2006032404  |
  9. +-----+-----------+-----+-------------+



二、Left join

  left join,（或left outer join:在Mysql中两者等价，推荐使用left join.）左连接从左表(A)产生一套完整的记录,与匹配的记录(右表(B)) .如果没有匹配,右侧将包含null。




  1. mysql> select * from atable  left join btable  on atable.aid=btable.bid;
  2. +-----+-----------+------+-------------+
  3. | aID | aNum      | bID  | bName       |
  4. +-----+-----------+------+-------------+
  5. |   1 | a20050111 |    1 |  2006032401 |
  6. |   2 | a20050112 |    2 | 2006032402  |
  7. |   3 | a20050113 |    3 | 2006032403  |
  8. |   4 | a20050114 |    4 | 2006032404  |
  9. |   5 | a20050115 | NULL | NULL        |
  10. +-----+-----------+------+-------------+


------------------------------------------------------------------------------------------------------------



  2).如果想只从左表(A)中产生一套记录，但不包含右表(B)的记录，可以通过设置where语句来执行，如下




  1. mysql> select * from atable  left join btable  on atable.aid=btable.bid
  2.     -> where atable.aid is  null or btable.bid is  null;
  3. +-----+-----------+------+-------+
  4. | aID | aNum      | bID  | bName |
  5. +-----+-----------+------+-------+
  6. |   5 | a20050115 | NULL | NULL  |
  7. +-----+-----------+------+-------+


-----------------------------------------------------------------------------------------



同理，还可以模拟inner join. 如下：





  1. mysql> select * from atable  left join btable  on atable.aid=btable.bid  where atable.aid is not null and btable.bid is not null;
  2. +-----+-----------+------+-------------+
  3. | aID | aNum      | bID  | bName       |
  4. +-----+-----------+------+-------------+
  5. |   1 | a20050111 |    1 |  2006032401 |
  6. |   2 | a20050112 |    2 | 2006032402  |
  7. |   3 | a20050113 |    3 | 2006032403  |
  8. |   4 | a20050114 |    4 | 2006032404  |
  9. +-----+-----------+------+-------------+

------------------------------------------------------------------------------------------



三、Right join

  同Left join



  1. mysql> select * from atable  right join btable  on atable.aid=btable.bid;
  2. +------+-----------+-----+-------------+
  3. | aID  | aNum      | bID | bName       |
  4. +------+-----------+-----+-------------+
  5. |    1 | a20050111 |   1 |  2006032401 |
  6. |    2 | a20050112 |   2 | 2006032402  |
  7. |    3 | a20050113 |   3 | 2006032403  |
  8. |    4 | a20050114 |   4 | 2006032404  |
  9. | NULL | NULL      |   8 | 2006032408  |
  10. +------+-----------+-----+-------------+



四、差集




  1. mysql> select * from atable  left join btable  on atable.aid=btable.bid
  2.     -> where btable.bid is null
  3.     -> union
  4.     -> select * from atable right join btable on atable.aid=btable.bid
  5.     -> where atable.aid is null;
  6. +------+-----------+------+------------+
  7. | aID  | aNum      | bID  | bName      |
  8. +------+-----------+------+------------+
  9. |    5 | a20050115 | NULL | NULL       |
  10. | NULL | NULL      |    8 | 2006032408 |
  11. +------+-----------+------+------------+


-----------------------------------------------------------------------------------



五.Cross join

  交叉连接，得到的结果是两个表的乘积，即笛卡尔积

    笛卡尔（Descartes）乘积又叫直积。假设集合A={a,b}，集合B={0,1,2}，则两个集合的笛卡尔积为{(a,0),(a,1),(a,2),(b,0),(b,1), (b,2)}。可以扩展到多个集合的情况。类似的例子有，如果A表示某学校学生的集合，B表示该学校所有课程的集合，则A与B的笛卡尔积表示所有可能的选课情况。




  1. mysql> select * from atable cross join btable;
  2. +-----+-----------+-----+-------------+
  3. | aID | aNum      | bID | bName       |
  4. +-----+-----------+-----+-------------+
  5. |   1 | a20050111 |   1 |  2006032401 |
  6. |   2 | a20050112 |   1 |  2006032401 |
  7. |   3 | a20050113 |   1 |  2006032401 |
  8. |   4 | a20050114 |   1 |  2006032401 |
  9. |   5 | a20050115 |   1 |  2006032401 |
  10. |   1 | a20050111 |   2 | 2006032402  |
  11. |   2 | a20050112 |   2 | 2006032402  |
  12. |   3 | a20050113 |   2 | 2006032402  |
  13. |   4 | a20050114 |   2 | 2006032402  |
  14. |   5 | a20050115 |   2 | 2006032402  |
  15. |   1 | a20050111 |   3 | 2006032403  |
  16. |   2 | a20050112 |   3 | 2006032403  |
  17. |   3 | a20050113 |   3 | 2006032403  |
  18. |   4 | a20050114 |   3 | 2006032403  |
  19. |   5 | a20050115 |   3 | 2006032403  |
  20. |   1 | a20050111 |   4 | 2006032404  |
  21. |   2 | a20050112 |   4 | 2006032404  |
  22. |   3 | a20050113 |   4 | 2006032404  |
  23. |   4 | a20050114 |   4 | 2006032404  |
  24. |   5 | a20050115 |   4 | 2006032404  |
  25. |   1 | a20050111 |   8 | 2006032408  |
  26. |   2 | a20050112 |   8 | 2006032408  |
  27. |   3 | a20050113 |   8 | 2006032408  |
  28. |   4 | a20050114 |   8 | 2006032408  |
  29. |   5 | a20050115 |   8 | 2006032408  |
  30. +-----+-----------+-----+-------------+
  31. 25 rows in set (0.00 sec)
  32.
  33.  <pre><code class="hljs cs"><span class="hljs-function">#再执行：mysql> <span class="hljs-keyword">select</span> * <span class="hljs-keyword">from</span> A inner <span class="hljs-keyword">join</span> B</span>; 试一试 (与上面的结果一样)
  34.
  35. <span class="hljs-meta">#在执行mysql> select * from A cross join B on A.name = B.name; 试一试</span></code>



    实际上，在 MySQL 中（仅限于 MySQL） CROSS JOIN 与 INNER JOIN 的表现是一样的，在不指定 ON 条件得到的结果都是笛卡尔积，反之取得两个表完全匹配的结果。    inner join 与 cross join 可以省略 inner 或 cross关键字，因此下面的 SQL 效果是一样的：


  1. ... FROM table1 INNER JOIN table2
  2. ... FROM table1 CROSS JOIN table2
  3. ... FROM table1 JOIN table2



六.union实现Full join

    全连接产生的所有记录（双方匹配记录）在表A和表B。如果没有匹配,则对面将包含null。与差集类似。




  1. mysql> select * from atable  left join btable  on atable.aid=btable.bid
  2.     -> union
  3.     -> select * from atable right join btable on atable.aid=btable.bid;
  4. +------+-----------+------+-------------+
  5. | aID  | aNum      | bID  | bName       |
  6. +------+-----------+------+-------------+
  7. |    1 | a20050111 |    1 |  2006032401 |
  8. |    2 | a20050112 |    2 | 2006032402  |
  9. |    3 | a20050113 |    3 | 2006032403  |
  10. |    4 | a20050114 |    4 | 2006032404  |
  11. |    5 | a20050115 | NULL | NULL        |
  12. | NULL | NULL      |    8 | 2006032408  |
  13. +------+-----------+------+-------------+


--------------------------------------------------------------------------------------------------------



七.性能优化

  1.显示(explicit) inner join VS 隐式(implicit) inner join




  1. select * from
  2. table a inner join table b
  3. on a.id = b.id;

VS


  1. select a.*, b.*
  2. from table a, table b
  3. where a.id = b.id;

    数据库中比较(10w数据)得之，它们用时几乎相同，第一个是显示的inner join，后一个是隐式的inner join。
2.left join/right join VS inner join
    尽量用inner join.避免 left join 和 null.



    在使用left join（或right join）时，应该清楚的知道以下几点：

(1). on与 where的执行顺序
    ON 条件（“A LEFT JOIN B ON 条件表达式”中的ON）用来决定如何从 B 表中检索数据行。如果 B 表中没有任何一行数据匹配 ON 的条件,将会额外生成一行所有列为 NULL 的数据,在匹配阶段 WHERE 子句的条件都不会被使用。仅在匹配阶段完成以后，WHERE 子句条件才会被使用。它将从匹配阶段产生的数据中检索过滤。
    所以我们要注意：在使用Left (right) join的时候，一定要在先给出尽可能多的匹配满足条件，减少Where的执行。如：


  1. select * from A
  2. inner join B on B.name = A.name
  3. left join C on C.name = B.name
  4. left join D on D.id = C.id
  5. where C.status>1 and D.status=1;

下面这种写法更省时

[sql]  view plain  copy

  1. select * from A
  2. inner join B on B.name = A.name
  3. left join C on C.name = B.name and C.status>1
  4. left join D on D.id = C.id and D.status=1

(2).注意ON 子句和 WHERE 子句的不同

[sql]  view plain  copy

  1. mysql> SELECT * FROM product LEFT JOIN product_details
  2.        ON (product.id = product_details.id)
  3.        AND product_details.id=2;
  4. +----+--------+------+--------+-------+
  5. | id | amount | id   | weight | exist |
  6. +----+--------+------+--------+-------+
  7. |  1 |    100 | NULL |   NULL |  NULL |
  8. |  2 |    200 |    2 |     22 |     0 |
  9. |  3 |    300 | NULL |   NULL |  NULL |
  10. |  4 |    400 | NULL |   NULL |  NULL |
  11. +----+--------+------+--------+-------+
  12. 4 rows in set (0.00 sec)
  13.
  14. mysql> SELECT * FROM product LEFT JOIN product_details
  15.        ON (product.id = product_details.id)
  16.        WHERE product_details.id=2;
  17. +----+--------+----+--------+-------+
  18. | id | amount | id | weight | exist |
  19. +----+--------+----+--------+-------+
  20. |  2 |    200 |  2 |     22 |     0 |
  21. +----+--------+----+--------+-------+
  22. 1 row in set (0.01 sec)

    从上可知，第一条查询使用 ON 条件决定了从 LEFT JOIN的 product_details表中检索符合的所有数据行。第二条查询做了简单的LEFT JOIN，然后使用 WHERE 子句从 LEFT JOIN的数据中过滤掉不符合条件的数据行。
(3).尽量避免子查询，而用join
    往往性能这玩意儿，更多时候体现在数据量比较大的时候，此时，我们应该避免复杂的子查询。如下：






  1. insert into t1(a1) select b1 from t2
  2. where not exists(select 1 from t1 where t1.id = t2.r_id);

下面这个更好


    1. insert into t1(a1)
    2. select b1 from t2
    3. left join (select distinct t1.id from t1 ) t1 on t1.id = t2.r_id
    4. where t1.id is null;

Apache beam Join.leftOuterJoin，如何传递空白TableRow？

Apache beam Join.leftOuterJoin，如何传递空白TableRow？

如何解决Apache beam Join.leftOuterJoin，如何传递空白TableRow？？

我想在 Apache Beam (JAVA Sdk) 中对 2 个 BigQuery 表执行 leftOuterJoin。

  1. 我阅读了表格 (leftTableCollection & rightTableCollection) 并且属于 PCollection<TableRow> 类型。

  2. 将它们转换为 PCollection<KV<String,TableRow>> 形式，即

  3. 我正在使用来自 Join.leftOuterJoin

    的 org.apache.beam.sdk.extensions.joinlibrary.Join

`

PCollection<KV<String,TableRow>> leftTableKVCollection =
    leftTableCollection.apply(ParDo.of(new ExtractLeftTableDoFn()));
PCollection<KV<String,TableRow>> rightTableKVCollection =
    rightTableCollection.apply(ParDo.of(new ExtractRightTableDoFn()));

TableRow rightTableNullValues = ???

PCollection<KV<String,KV<TableRow,TableRow>>> joinKvResults =
    Join.leftOuterJoin(leftTableKVCollection,rightTableKVCollection,rightTableNullValues);

`

我不知道要为 rightTableNullValues 传递什么？

尝试使用 new TableRow() 抛出 unable to serialize 错误。

任何建议都会非常有帮助。 TIA

解决方法

暂无找到可以解决该程序问题的有效方法，小编努力寻找整理中！

如果你已经找到好的解决方法，欢迎将解决方案带上本链接一起发送给小编。

小编邮箱:dio#foxmail.com (将#修改为@）

Hive_LEFT SEMI JOIN / LEFT OUTER JOIN 与 (IN / NOT IN), (EXISTS / NOT EXISTS ) 分析

Hive_LEFT SEMI JOIN / LEFT OUTER JOIN 与 (IN / NOT IN), (EXISTS / NOT EXISTS ) 分析



参考文章 ： https://blog.csdn.net/happyrocking/article/details/79885071



本篇文章，我们主要就 Hive 中的  LEFT SEMI JOIN 和  (IN / NOT IN), (EXISTS / NOT EXISTS ) 子句查询做一个了解。



LEFT SEMI JOIN 基本认识

首先，我们先要了解下什么是 LEFT SEMI JOIN.



特点

1、left semi join 的限制是， JOIN 子句中右边的表只能在 ON 子句中设置过滤条件，在 WHERE 子句、SELECT 子句或其他地方过滤都不行。

2、left semi join 是只传递表的 join key 给 map 阶段，因此left semi join 中最后 select 的结果只许出现左表。

3、因为 left semi join 是 in(keySet) 的关系，遇到右表重复记录，左表会跳过，而 join 则会一直遍历。这就导致右表有重复值得情况下 left semi join 只产生一条，join 会产生多条，也会导致 left semi join 的性能更高。

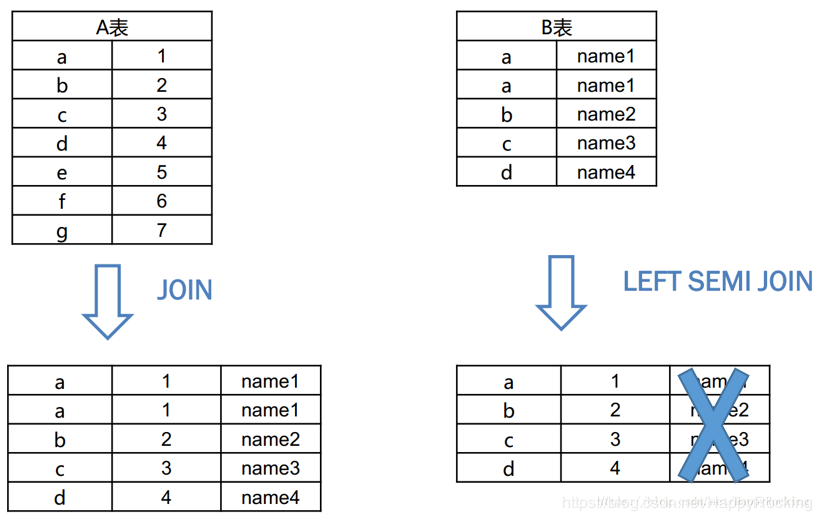

比如以下A表和B表进行 join 或 left semi join，然后 select 出所有字段，结果区别如下：


注意：蓝色叉的那一列实际是不存在left semi join中的，因为最后 select 的结果只许出现左表。











其实可以这么认为 LEFT SEMI JOIN 就是 子查询形式的 (IN / NOT IN), (EXISTS / NOT EXISTS ) 的替代方案。

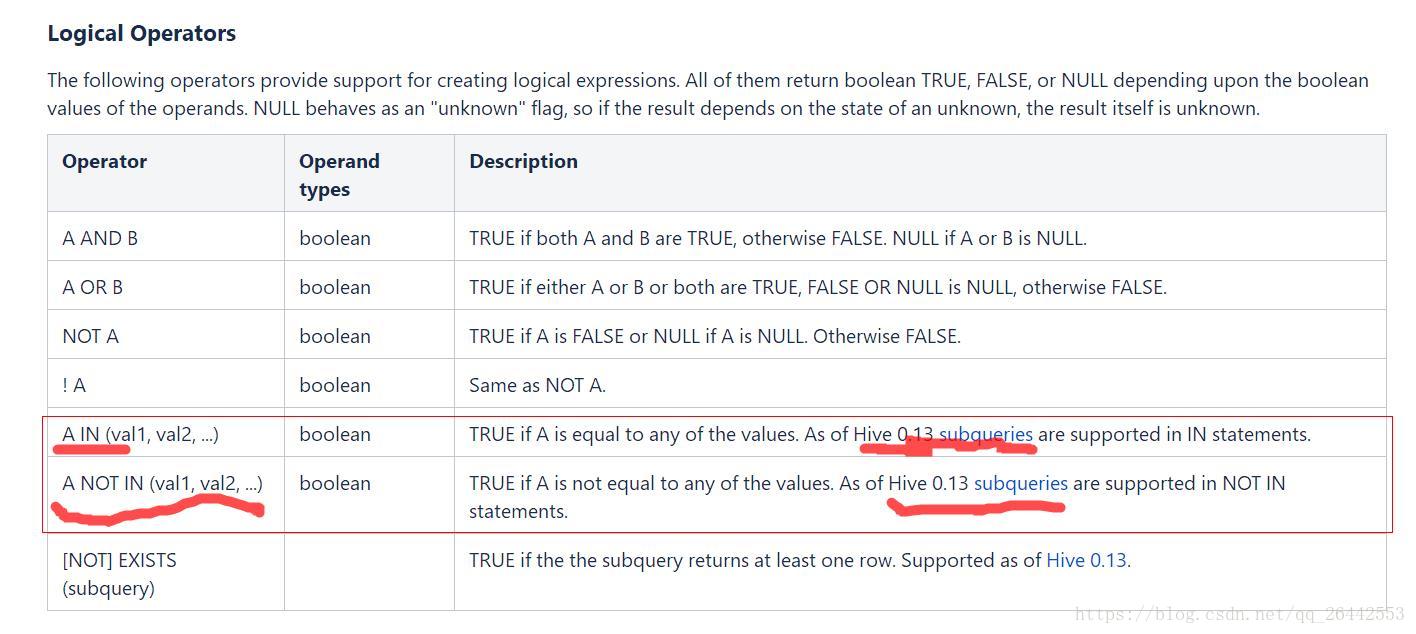

因为 HIVE 0.13 版本之前，是不支持 (IN / NOT IN), (EXISTS / NOT EXISTS ) 中存在子查询语句的，此时我们需要使用 LEFT SEMI JOIN

文档如下：



构建基础的测试数据

DROP TABLE IF EXISTS data_semi_a;
    • DROP TABLE IF EXISTS data_semi_b;
  • CREATE TABLE IF NOT EXISTS data_semi_a
  • (
  • user_id BIGINT
  • ,sex_id BIGINT
  • );
  • CREATE TABLE IF NOT EXISTS data_semi_b
  • (
  • user_id BIGINT
  • ,sex_id BIGINT
  • ,age BIGINT
  • );
  • INSERT INTO TABLE data_semi_a VALUES
  • (NULL ,0)
  • ,(1, 1)
  • ,(1, 0)
  • ,(2, 1)
  • ,(3, 0)
  • ,(4, 1)
  • ;
  • INSERT INTO TABLE data_semi_b VALUES
  • (NULL, 0, 3)
  • ,(1, 0, 12)
  • ,(2, 1, 14)
  • ;

    •

    测试数据：

    data_semi_a

    1. +----------------------+---------------------+
    2. | data_semi_a.user_id  | data_semi_a.sex_id  |
    3. +----------------------+---------------------+
    4. | NULL                 | 0                   |
    5. | 1                    | 1                   |
    6. | 1                    | 0                   |
    7. | 2                    | 1                   |
    8. | 3                    | 0                   |
    9. | 4                    | 1                   |
    10. +----------------------+---------------------+



    data_semi_b

    1. +----------------------+---------------------+------------------+
    2. | data_semi_b.user_id  | data_semi_b.sex_id  | data_semi_b.age  |
    3. +----------------------+---------------------+------------------+
    4. | NULL                 | 0                   | 3                |
    5. | 1                    | 0                   | 12               |
    6. | 2                    | 1                   | 14               |
    7. +----------------------+---------------------+------------------+











    单条件的 LEFT SEMI JOIN  相当于 (IN )



    注意

    LEFT SEMI JOIN 等同于 IN ，其原理是 只传递 LEFT SEMI JOIN 中的 KEY 。

    所以 A LEFT SEMI JOIN B ， SELECT 语句中 不能出现B 中的字段。

    1. SELECT
    2.  a.user_id
    3.  ,a.sex_id
    4.  ,b.age
    5. FROM data_semi_a AS a
    6. LEFT SEMI JOIN data_semi_b AS b
    7.  ON a.user_id = b.user_id
    8. ;



    Error: Error while compiling statement: FAILED: SemanticException [Error 10004]: Line 4:1 Invalid table alias or column reference 'b': (possible column names are: user_id, sex_id) (state=42000,code=10004)





    单条件的 LEFT SEMI JOIN  相当于 (IN )   , 例如如下SQL

    SQL 语句

    1. SELECT
    2.  a.user_id
    3.  ,a.sex_id
    4. FROM data_semi_a AS a
    5. LEFT SEMI JOIN data_semi_b AS b
    6.  ON a.user_id = b.user_id
    7. ;

    等价的 IN SQL

    1. SELECT
    2.  a.user_id
    3.  ,a.sex_id
    4. FROM data_semi_a AS a
    5. WHERE a.user_id IN (
    6.  SELECT b.user_id
    7.  FROM data_semi_b AS b
    8. );



    我们比较下2个SQL 的运行结果

    LEFT SEMI JOIN 的执行结果

    1. INFO  : Hadoop job information for Stage-1: number of mappers: 2; number of reducers: 1
    2. INFO  : 2020-04-12 10:53:09,591 Stage-1 map = 0%,  reduce = 0%
    3. INFO  : 2020-04-12 10:53:17,849 Stage-1 map = 50%,  reduce = 0%, Cumulative CPU 3.12 sec
    4. INFO  : 2020-04-12 10:53:22,975 Stage-1 map = 100%,  reduce = 0%, Cumulative CPU 5.84 sec
    5. INFO  : 2020-04-12 10:53:29,141 Stage-1 map = 100%,  reduce = 100%, Cumulative CPU 7.77 sec
    6. INFO  : MapReduce Total cumulative CPU time: 7 seconds 770 msec
    7. INFO  : Ended Job = job_1586423165261_0087
    8. INFO  : MapReduce Jobs Launched:
    9. INFO  : Stage-Stage-1: Map: 2  Reduce: 1   Cumulative CPU: 7.77 sec   HDFS Read: 16677 HDFS Write: 135 SUCCESS
    10. INFO  : Total MapReduce CPU Time Spent: 7 seconds 770 msec
    11. INFO  : Completed executing command(queryId=hive_20200412105301_9f643e42-c966-4140-8c72-330be6bdd73c); Time taken: 28.939 seconds
    12. INFO  : OK
    13. +------------+-----------+
    14. | a.user_id  | a.sex_id  |
    15. +------------+-----------+
    16. | 1          | 0         |
    17. | 1          | 1         |
    18. | 2          | 1         |
    19. +------------+-----------+
    20. 3 rows selected (29.073 seconds)



    IN 的执行结果

    1. INFO  : Hadoop job information for Stage-1: number of mappers: 2; number of reducers: 1
    2. INFO  : 2020-04-12 10:37:26,143 Stage-1 map = 0%,  reduce = 0%
    3. INFO  : 2020-04-12 10:37:33,376 Stage-1 map = 50%,  reduce = 0%, Cumulative CPU 2.71 sec
    4. INFO  : 2020-04-12 10:37:39,510 Stage-1 map = 100%,  reduce = 0%, Cumulative CPU 5.6 sec
    5. INFO  : 2020-04-12 10:37:44,680 Stage-1 map = 100%,  reduce = 100%, Cumulative CPU 7.41 sec
    6. INFO  : MapReduce Total cumulative CPU time: 7 seconds 410 msec
    7. INFO  : Ended Job = job_1586423165261_0085
    8. INFO  : MapReduce Jobs Launched:
    9. INFO  : Stage-Stage-1: Map: 2  Reduce: 1   Cumulative CPU: 7.41 sec   HDFS Read: 16726 HDFS Write: 135 SUCCESS
    10. INFO  : Total MapReduce CPU Time Spent: 7 seconds 410 msec
    11. INFO  : Completed executing command(queryId=hive_20200412103717_2ab604da-f301-4fee-b9bd-9c22ad6e65a1); Time taken: 27.796 seconds
    12. INFO  : OK
    13. +------------+-----------+
    14. | a.user_id  | a.sex_id  |
    15. +------------+-----------+
    16. | 1          | 0         |
    17. | 1          | 1         |
    18. | 2          | 1         |
    19. +------------+-----------+
    20. 3 rows selected (27.902 seconds)



    我们再看下两个语句的 EXPLAIN 结果：

    LEFT SEMI JOIN 的 EXPLAIN 结果：

    1. INFO  : Starting task [Stage-3:EXPLAIN] in serial mode
    2. INFO  : Completed executing command(queryId=hive_20200412105949_53e51917-8c04-4f6f-b9fd-32ab71a2888b); Time taken: 0.005 seconds
    3. INFO  : OK
    4. +----------------------------------------------------+
    5. |                      Explain                       |
    6. +----------------------------------------------------+
    7. | STAGE DEPENDENCIES:                                |
    8. |   Stage-1 is a root stage                          |
    9. |   Stage-0 depends on stages: Stage-1               |
    10. |                                                    |
    11. | STAGE PLANS:                                       |
    12. |   Stage: Stage-1                                   |
    13. |     Map Reduce                                     |
    14. |       Map Operator Tree:                           |
    15. |           TableScan                                |
    16. |             alias: a                               |
    17. |             filterExpr: user_id is not null (type: boolean) |
    18. |             Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    19. |             Filter Operator                        |
    20. |               predicate: user_id is not null (type: boolean) |
    21. |               Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    22. |               Reduce Output Operator               |
    23. |                 key expressions: user_id (type: bigint) |
    24. |                 sort order: +                      |
    25. |                 Map-reduce partition columns: user_id (type: bigint) |
    26. |                 Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    27. |                 value expressions: sex_id (type: bigint) |
    28. |           TableScan                                |
    29. |             alias: b                               |
    30. |             filterExpr: user_id is not null (type: boolean) |
    31. |             Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    32. |             Filter Operator                        |
    33. |               predicate: user_id is not null (type: boolean) |
    34. |               Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    35. |               Select Operator                      |
    36. |                 expressions: user_id (type: bigint) |
    37. |                 outputColumnNames: _col0           |
    38. |                 Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    39. |                 Group By Operator                  |
    40. |                   keys: _col0 (type: bigint)       |
    41. |                   mode: hash                       |
    42. |                   outputColumnNames: _col0         |
    43. |                   Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    44. |                   Reduce Output Operator           |
    45. |                     key expressions: _col0 (type: bigint) |
    46. |                     sort order: +                  |
    47. |                     Map-reduce partition columns: _col0 (type: bigint) |
    48. |                     Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    49. |       Reduce Operator Tree:                        |
    50. |         Join Operator                              |
    51. |           condition map:                           |
    52. |                Left Semi Join 0 to 1               |
    53. |           keys:                                    |
    54. |             0 user_id (type: bigint)               |
    55. |             1 _col0 (type: bigint)                 |
    56. |           outputColumnNames: _col0, _col1          |
    57. |           Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    58. |           File Output Operator                     |
    59. |             compressed: false                      |
    60. |             Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    61. |             table:                                 |
    62. |                 input format: org.apache.hadoop.mapred.SequenceFileInputFormat |
    63. |                 output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat |
    64. |                 serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe |
    65. |                                                    |
    66. |   Stage: Stage-0                                   |
    67. |     Fetch Operator                                 |
    68. |       limit: -1                                    |
    69. |       Processor Tree:                              |
    70. |         ListSink                                   |
    71. |                                                    |
    72. +----------------------------------------------------+
    73. 65 rows selected (0.136 seconds)

    IN 的 EXPLAIN 结果：

    1. INFO  : Starting task [Stage-3:EXPLAIN] in serial mode
    2. INFO  : Completed executing command(queryId=hive_20200412110229_81d9cf79-50e2-46f1-8152-a399038861c7); Time taken: 0.005 seconds
    3. INFO  : OK
    4. +----------------------------------------------------+
    5. |                      Explain                       |
    6. +----------------------------------------------------+
    7. | STAGE DEPENDENCIES:                                |
    8. |   Stage-1 is a root stage                          |
    9. |   Stage-0 depends on stages: Stage-1               |
    10. |                                                    |
    11. | STAGE PLANS:                                       |
    12. |   Stage: Stage-1                                   |
    13. |     Map Reduce                                     |
    14. |       Map Operator Tree:                           |
    15. |           TableScan                                |
    16. |             alias: a                               |
    17. |             filterExpr: user_id is not null (type: boolean) |
    18. |             Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    19. |             Filter Operator                        |
    20. |               predicate: user_id is not null (type: boolean) |
    21. |               Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    22. |               Reduce Output Operator               |
    23. |                 key expressions: user_id (type: bigint) |
    24. |                 sort order: +                      |
    25. |                 Map-reduce partition columns: user_id (type: bigint) |
    26. |                 Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    27. |                 value expressions: sex_id (type: bigint) |
    28. |           TableScan                                |
    29. |             alias: b                               |
    30. |             filterExpr: user_id is not null (type: boolean) |
    31. |             Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    32. |             Filter Operator                        |
    33. |               predicate: user_id is not null (type: boolean) |
    34. |               Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    35. |               Select Operator                      |
    36. |                 expressions: user_id (type: bigint) |
    37. |                 outputColumnNames: _col0           |
    38. |                 Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    39. |                 Group By Operator                  |
    40. |                   keys: _col0 (type: bigint)       |
    41. |                   mode: hash                       |
    42. |                   outputColumnNames: _col0         |
    43. |                   Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    44. |                   Reduce Output Operator           |
    45. |                     key expressions: _col0 (type: bigint) |
    46. |                     sort order: +                  |
    47. |                     Map-reduce partition columns: _col0 (type: bigint) |
    48. |                     Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    49. |       Reduce Operator Tree:                        |
    50. |         Join Operator                              |
    51. |           condition map:                           |
    52. |                Left Semi Join 0 to 1               |
    53. |           keys:                                    |
    54. |             0 user_id (type: bigint)               |
    55. |             1 _col0 (type: bigint)                 |
    56. |           outputColumnNames: _col0, _col1          |
    57. |           Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    58. |           File Output Operator                     |
    59. |             compressed: false                      |
    60. |             Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    61. |             table:                                 |
    62. |                 input format: org.apache.hadoop.mapred.SequenceFileInputFormat |
    63. |                 output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat |
    64. |                 serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe |
    65. |                                                    |
    66. |   Stage: Stage-0                                   |
    67. |     Fetch Operator                                 |
    68. |       limit: -1                                    |
    69. |       Processor Tree:                              |
    70. |         ListSink                                   |
    71. |                                                    |
    72. +----------------------------------------------------+
    73. 65 rows selected (0.127 seconds)

    可以看到两者在执行结果 和 EXPLAIN 结果上是完全一致的。

    其实 IN 内部也是使用 的 LEFT SEMI JOIN









    LEFT OUTER JOIN 实现 NOT IN



    注意 LEFT SEMI JOIN 不能实现 NOT IN

    本质 ： Hive 中不支持不等值连接！！！



    1. SELECT
    2.  a.user_id
    3.  ,a.sex_id
    4. FROM data_semi_a AS a
    5. LEFT SEMI JOIN data_semi_b AS b
    6.  ON (a.user_id != b.user_id)
    7. ;

    Error: Error while compiling statement: FAILED: SemanticException [Error 10017]: Line 6:4 Both left and right aliases encountered in JOIN 'user_id' (state=42000,code=10017)





    正确写法

    1. SELECT
    2.  a.user_id
    3.  ,a.sex_id
    4. FROM data_semi_a AS a
    5. WHERE a.user_id NOT IN (
    6.  SELECT b.user_id
    7.  FROM data_semi_b AS b
    8. );
    1. INFO  : Hadoop job information for Stage-2: number of mappers: 2; number of reducers: 1
    2. INFO  : 2020-04-12 23:02:26,751 Stage-2 map = 0%,  reduce = 0%
    3. INFO  : 2020-04-12 23:02:33,938 Stage-2 map = 50%,  reduce = 0%, Cumulative CPU 1.76 sec
    4. INFO  : 2020-04-12 23:02:39,172 Stage-2 map = 100%,  reduce = 0%, Cumulative CPU 3.35 sec
    5. INFO  : 2020-04-12 23:02:47,688 Stage-2 map = 100%,  reduce = 100%, Cumulative CPU 7.88 sec
    6. INFO  : MapReduce Total cumulative CPU time: 7 seconds 880 msec
    7. INFO  : Ended Job = job_1586423165261_0106
    8. INFO  : MapReduce Jobs Launched:
    9. INFO  : Stage-Stage-4: Map: 1  Reduce: 1   Cumulative CPU: 6.49 sec   HDFS Read: 8372 HDFS Write: 96 SUCCESS
    10. INFO  : Stage-Stage-1: Map: 2  Reduce: 1   Cumulative CPU: 5.65 sec   HDFS Read: 11974 HDFS Write: 96 SUCCESS
    11. INFO  : Stage-Stage-2: Map: 2  Reduce: 1   Cumulative CPU: 7.88 sec   HDFS Read: 14131 HDFS Write: 87 SUCCESS
    12. INFO  : Total MapReduce CPU Time Spent: 20 seconds 20 msec
    13. INFO  : Completed executing command(queryId=hive_20200412230117_fef818dc-e433-4880-9c8d-f6a9d28a08a9); Time taken: 91.471 seconds
    14. INFO  : OK
    15. +------------+-----------+
    16. | a.user_id  | a.sex_id  |
    17. +------------+-----------+
    18. +------------+-----------+
    19. No rows selected (91.674 seconds)



    等价的 SQL ,  注意 NOT IN 不能使用 LEFT SEMI JOIN 实现，我们需要使用 LEFT OUTER JOIN 进行实现：

    等价的LEFT OUTER JOIN   的 SQL

    1. SELECT
    2.   a.user_id
    3.   ,a.sex_id
    4. FROM data_semi_a AS a
    5. LEFT OUTER JOIN data_semi_b AS b
    6.  ON a.user_id = b.user_id
    7.  AND b.user_id IS NULL
    8. WHERE a.user_id IS NOT NULL
    9.  AND b.user_id IS NOT NULL
    10. ;
    1. INFO  : Hadoop job information for Stage-1: number of mappers: 2; number of reducers: 1
    2. INFO  : 2020-04-12 23:04:47,896 Stage-1 map = 0%,  reduce = 0%
    3. INFO  : 2020-04-12 23:04:55,176 Stage-1 map = 50%,  reduce = 0%, Cumulative CPU 2.91 sec
    4. INFO  : 2020-04-12 23:05:00,288 Stage-1 map = 100%,  reduce = 0%, Cumulative CPU 5.53 sec
    5. INFO  : 2020-04-12 23:05:06,449 Stage-1 map = 100%,  reduce = 100%, Cumulative CPU 8.45 sec
    6. INFO  : MapReduce Total cumulative CPU time: 8 seconds 450 msec
    7. INFO  : Ended Job = job_1586423165261_0107
    8. INFO  : MapReduce Jobs Launched:
    9. INFO  : Stage-Stage-1: Map: 2  Reduce: 1   Cumulative CPU: 8.45 sec   HDFS Read: 16358 HDFS Write: 87 SUCCESS
    10. INFO  : Total MapReduce CPU Time Spent: 8 seconds 450 msec
    11. INFO  : Completed executing command(queryId=hive_20200412230438_62ce326e-1b03-4c5a-a842-6816dc6feda3); Time taken: 28.871 seconds
    12. INFO  : OK
    13. +------------+-----------+
    14. | a.user_id  | a.sex_id  |
    15. +------------+-----------+
    16. +------------+-----------+
    17. No rows selected (28.979 seconds)



    我们看下这两个SQL 的执行过程

    NOT IN 的 EXPLAIN 结果：

    1. +----------------------------------------------------+
    2. |                      Explain                       |
    3. +----------------------------------------------------+
    4. | STAGE DEPENDENCIES:                                |
    5. |   Stage-4 is a root stage                          |
    6. |   Stage-1 depends on stages: Stage-4               |
    7. |   Stage-2 depends on stages: Stage-1               |
    8. |   Stage-0 depends on stages: Stage-2               |
    9. |                                                    |
    10. | STAGE PLANS:                                       |
    11. |   Stage: Stage-4                                   |
    12. |     Map Reduce                                     |
    13. |       Map Operator Tree:                           |
    14. |           TableScan                                |
    15. |             alias: b                               |
    16. |             filterExpr: user_id is null (type: boolean) |
    17. |             Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    18. |             Filter Operator                        |
    19. |               predicate: user_id is null (type: boolean) |
    20. |               Statistics: Num rows: 1 Data size: 6 Basic stats: COMPLETE Column stats: NONE |
    21. |               Select Operator                      |
    22. |                 Statistics: Num rows: 1 Data size: 6 Basic stats: COMPLETE Column stats: NONE |
    23. |                 Group By Operator                  |
    24. |                   aggregations: count()            |
    25. |                   mode: hash                       |
    26. |                   outputColumnNames: _col0         |
    27. |                   Statistics: Num rows: 1 Data size: 8 Basic stats: COMPLETE Column stats: NONE |
    28. |                   Reduce Output Operator           |
    29. |                     sort order:                    |
    30. |                     Statistics: Num rows: 1 Data size: 8 Basic stats: COMPLETE Column stats: NONE |
    31. |                     value expressions: _col0 (type: bigint) |
    32. |       Reduce Operator Tree:                        |
    33. |         Group By Operator                          |
    34. |           aggregations: count(VALUE._col0)         |
    35. |           mode: mergepartial                       |
    36. |           outputColumnNames: _col0                 |
    37. |           Statistics: Num rows: 1 Data size: 8 Basic stats: COMPLETE Column stats: NONE |
    38. |           Filter Operator                          |
    39. |             predicate: (_col0 = 0) (type: boolean) |
    40. |             Statistics: Num rows: 1 Data size: 8 Basic stats: COMPLETE Column stats: NONE |
    41. |             Select Operator                        |
    42. |               Statistics: Num rows: 1 Data size: 8 Basic stats: COMPLETE Column stats: NONE |
    43. |               Group By Operator                    |
    44. |                 keys: 0 (type: bigint)             |
    45. |                 mode: hash                         |
    46. |                 outputColumnNames: _col0           |
    47. |                 Statistics: Num rows: 1 Data size: 8 Basic stats: COMPLETE Column stats: NONE |
    48. |                 File Output Operator               |
    49. |                   compressed: false                |
    50. |                   table:                           |
    51. |                       input format: org.apache.hadoop.mapred.SequenceFileInputFormat |
    52. |                       output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat |
    53. |                       serde: org.apache.hadoop.hive.serde2.lazybinary.LazyBinarySerDe |
    54. |                                                    |
    55. |   Stage: Stage-1                                   |
    56. |     Map Reduce                                     |
    57. |       Map Operator Tree:                           |
    58. |           TableScan                                |
    59. |             alias: a                               |
    60. |             Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    61. |             Reduce Output Operator                 |
    62. |               sort order:                          |
    63. |               Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    64. |               value expressions: user_id (type: bigint), sex_id (type: bigint) |
    65. |           TableScan                                |
    66. |             Reduce Output Operator                 |
    67. |               sort order:                          |
    68. |               Statistics: Num rows: 1 Data size: 8 Basic stats: COMPLETE Column stats: NONE |
    69. |       Reduce Operator Tree:                        |
    70. |         Join Operator                              |
    71. |           condition map:                           |
    72. |                Left Semi Join 0 to 1               |
    73. |           keys:                                    |
    74. |             0                                      |
    75. |             1                                      |
    76. |           outputColumnNames: _col0, _col1          |
    77. |           Statistics: Num rows: 6 Data size: 73 Basic stats: COMPLETE Column stats: NONE |
    78. |           File Output Operator                     |
    79. |             compressed: false                      |
    80. |             table:                                 |
    81. |                 input format: org.apache.hadoop.mapred.SequenceFileInputFormat |
    82. |                 output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat |
    83. |                 serde: org.apache.hadoop.hive.serde2.lazybinary.LazyBinarySerDe |
    84. |                                                    |
    85. |   Stage: Stage-2                                   |
    86. |     Map Reduce                                     |
    87. |       Map Operator Tree:                           |
    88. |           TableScan                                |
    89. |             Reduce Output Operator                 |
    90. |               key expressions: _col0 (type: bigint) |
    91. |               sort order: +                        |
    92. |               Map-reduce partition columns: _col0 (type: bigint) |
    93. |               Statistics: Num rows: 6 Data size: 73 Basic stats: COMPLETE Column stats: NONE |
    94. |               value expressions: _col1 (type: bigint) |
    95. |           TableScan                                |
    96. |             alias: b                               |
    97. |             Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    98. |             Select Operator                        |
    99. |               expressions: user_id (type: bigint)  |
    100. |               outputColumnNames: _col0             |
    101. |               Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    102. |               Reduce Output Operator               |
    103. |                 key expressions: _col0 (type: bigint) |
    104. +----------------------------------------------------+
    105. |                      Explain                       |
    106. +----------------------------------------------------+
    107. |                 sort order: +                      |
    108. |                 Map-reduce partition columns: _col0 (type: bigint) |
    109. |                 Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    110. |       Reduce Operator Tree:                        |
    111. |         Join Operator                              |
    112. |           condition map:                           |
    113. |                Left Outer Join0 to 1               |
    114. |           keys:                                    |
    115. |             0 _col0 (type: bigint)                 |
    116. |             1 _col0 (type: bigint)                 |
    117. |           outputColumnNames: _col0, _col1, _col5   |
    118. |           Statistics: Num rows: 6 Data size: 80 Basic stats: COMPLETE Column stats: NONE |
    119. |           Filter Operator                          |
    120. |             predicate: _col5 is null (type: boolean) |
    121. |             Statistics: Num rows: 3 Data size: 40 Basic stats: COMPLETE Column stats: NONE |
    122. |             Select Operator                        |
    123. |               expressions: _col0 (type: bigint), _col1 (type: bigint) |
    124. |               outputColumnNames: _col0, _col1      |
    125. |               Statistics: Num rows: 3 Data size: 40 Basic stats: COMPLETE Column stats: NONE |
    126. |               File Output Operator                 |
    127. |                 compressed: false                  |
    128. |                 Statistics: Num rows: 3 Data size: 40 Basic stats: COMPLETE Column stats: NONE |
    129. |                 table:                             |
    130. |                     input format: org.apache.hadoop.mapred.SequenceFileInputFormat |
    131. |                     output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat |
    132. |                     serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe |
    133. |                                                    |
    134. |   Stage: Stage-0                                   |
    135. |     Fetch Operator                                 |
    136. |       limit: -1                                    |
    137. |       Processor Tree:                              |
    138. |         ListSink                                   |
    139. |                                                    |
    140. +----------------------------------------------------+



    LEFT OUTER JOIN 的 EXPLAIN 结果：

    1. +----------------------------------------------------+
    2. |                      Explain                       |
    3. +----------------------------------------------------+
    4. | STAGE DEPENDENCIES:                                |
    5. |   Stage-1 is a root stage                          |
    6. |   Stage-0 depends on stages: Stage-1               |
    7. |                                                    |
    8. | STAGE PLANS:                                       |
    9. |   Stage: Stage-1                                   |
    10. |     Map Reduce                                     |
    11. |       Map Operator Tree:                           |
    12. |           TableScan                                |
    13. |             alias: a                               |
    14. |             filterExpr: user_id is not null (type: boolean) |
    15. |             Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    16. |             Filter Operator                        |
    17. |               predicate: user_id is not null (type: boolean) |
    18. |               Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    19. |               Reduce Output Operator               |
    20. |                 key expressions: user_id (type: bigint) |
    21. |                 sort order: +                      |
    22. |                 Map-reduce partition columns: user_id (type: bigint) |
    23. |                 Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    24. |                 value expressions: sex_id (type: bigint) |
    25. |           TableScan                                |
    26. |             alias: b                               |
    27. |             filterExpr: (user_id is null and user_id is not null) (type: boolean) |
    28. |             Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    29. |             Filter Operator                        |
    30. |               predicate: (user_id is null and user_id is not null) (type: boolean) |
    31. |               Statistics: Num rows: 1 Data size: 6 Basic stats: COMPLETE Column stats: NONE |
    32. |               Reduce Output Operator               |
    33. |                 key expressions: user_id (type: bigint) |
    34. |                 sort order: +                      |
    35. |                 Map-reduce partition columns: user_id (type: bigint) |
    36. |                 Statistics: Num rows: 1 Data size: 6 Basic stats: COMPLETE Column stats: NONE |
    37. |       Reduce Operator Tree:                        |
    38. |         Join Operator                              |
    39. |           condition map:                           |
    40. |                Left Outer Join0 to 1               |
    41. |           keys:                                    |
    42. |             0 user_id (type: bigint)               |
    43. |             1 user_id (type: bigint)               |
    44. |           outputColumnNames: _col0, _col1, _col5   |
    45. |           Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    46. |           Filter Operator                          |
    47. |             predicate: _col5 is not null (type: boolean) |
    48. |             Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    49. |             Select Operator                        |
    50. |               expressions: _col0 (type: bigint), _col1 (type: bigint) |
    51. |               outputColumnNames: _col0, _col1      |
    52. |               Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    53. |               File Output Operator                 |
    54. |                 compressed: false                  |
    55. |                 Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    56. |                 table:                             |
    57. |                     input format: org.apache.hadoop.mapred.SequenceFileInputFormat |
    58. |                     output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat |
    59. |                     serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe |
    60. |                                                    |
    61. |   Stage: Stage-0                                   |
    62. |     Fetch Operator                                 |
    63. |       limit: -1                                    |
    64. |       Processor Tree:                              |
    65. |         ListSink                                   |
    66. |                                                    |
    67. +----------------------------------------------------+
    68. 63 rows selected (0.143 seconds)













    LEFT SEMI JOIN 实现多条件 IN , 即 EXISTS



    注意： IN 只能用户单列，如果是多列的话，我们需要使用 EXISTS



    如下的IN 的SQL 是错误的

    1. SELECT
    2.  a.user_id
    3.  ,a.sex_id
    4. FROM data_semi_a AS a
    5. WHERE (a.user_id, a.sex_id) IN (
    6.  SELECT
    7.  a.user_id
    8.  ,a.sex_id
    9.  FROM data_semi_b AS b
    10. )
    11. ;

    Error: Error while compiling statement: FAILED: ParseException line 6:0 mismatched input 'SELECT' expecting ( near '(' in expression specification (state=42000,code=40000)





    我们需要用如下的形式，

    1. SELECT
    2.  a.user_id
    3.  ,a.sex_id
    4. FROM data_semi_a AS a
    5. LEFT SEMI JOIN data_semi_b AS b
    6.  ON a.user_id = b.user_id
    7.  AND a.sex_id = b.sex_id
    8. ;

    或者

    1. SELECT
    2.  a.user_id
    3.  ,a.sex_id
    4. FROM data_semi_a AS a
    5. WHERE EXISTS (
    6.  SELECT 1
    7.  FROM data_semi_b AS b
    8.  WHERE
    9.   a.user_id = b.user_id
    10.   AND a.sex_id = b.sex_id
    11. )
    12. ;

    运行结果

    1. INFO  : Hadoop job information for Stage-1: number of mappers: 2; number of reducers: 1
    2. INFO  : 2020-04-12 23:46:16,157 Stage-1 map = 0%,  reduce = 0%
    3. INFO  : 2020-04-12 23:46:24,375 Stage-1 map = 50%,  reduce = 0%, Cumulative CPU 3.04 sec
    4. INFO  : 2020-04-12 23:46:28,545 Stage-1 map = 100%,  reduce = 0%, Cumulative CPU 5.84 sec
    5. INFO  : 2020-04-12 23:46:35,732 Stage-1 map = 100%,  reduce = 100%, Cumulative CPU 7.85 sec
    6. INFO  : MapReduce Total cumulative CPU time: 7 seconds 850 msec
    7. INFO  : Ended Job = job_1586423165261_0110
    8. INFO  : MapReduce Jobs Launched:
    9. INFO  : Stage-Stage-1: Map: 2  Reduce: 1   Cumulative CPU: 7.85 sec   HDFS Read: 17951 HDFS Write: 119 SUCCESS
    10. INFO  : Total MapReduce CPU Time Spent: 7 seconds 850 msec
    11. INFO  : Completed executing command(queryId=hive_20200412234607_8b6acba0-54bb-420f-80df-a5efd5dc9ae5); Time taken: 29.286 seconds
    12. INFO  : OK
    13. +------------+-----------+
    14. | a.user_id  | a.sex_id  |
    15. +------------+-----------+
    16. | 1          | 0         |
    17. | 2          | 1         |
    18. +------------+-----------+
    19. 2 rows selected (29.379 seconds)





    我们看下两种方式 的 EXPLAIN 结果 ：

    LEFT SEMI JOIN

    1. +----------------------------------------------------+
    2. |                      Explain                       |
    3. +----------------------------------------------------+
    4. | STAGE DEPENDENCIES:                                |
    5. |   Stage-1 is a root stage                          |
    6. |   Stage-0 depends on stages: Stage-1               |
    7. |                                                    |
    8. | STAGE PLANS:                                       |
    9. |   Stage: Stage-1                                   |
    10. |     Map Reduce                                     |
    11. |       Map Operator Tree:                           |
    12. |           TableScan                                |
    13. |             alias: a                               |
    14. |             filterExpr: (user_id is not null and sex_id is not null) (type: boolean) |
    15. |             Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    16. |             Filter Operator                        |
    17. |               predicate: (user_id is not null and sex_id is not null) (type: boolean) |
    18. |               Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    19. |               Reduce Output Operator               |
    20. |                 key expressions: user_id (type: bigint), sex_id (type: bigint) |
    21. |                 sort order: ++                     |
    22. |                 Map-reduce partition columns: user_id (type: bigint), sex_id (type: bigint) |
    23. |                 Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    24. |           TableScan                                |
    25. |             alias: b                               |
    26. |             filterExpr: (user_id is not null and sex_id is not null) (type: boolean) |
    27. |             Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    28. |             Filter Operator                        |
    29. |               predicate: (user_id is not null and sex_id is not null) (type: boolean) |
    30. |               Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    31. |               Select Operator                      |
    32. |                 expressions: user_id (type: bigint), sex_id (type: bigint) |
    33. |                 outputColumnNames: _col0, _col1    |
    34. |                 Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    35. |                 Group By Operator                  |
    36. |                   keys: _col0 (type: bigint), _col1 (type: bigint) |
    37. |                   mode: hash                       |
    38. |                   outputColumnNames: _col0, _col1  |
    39. |                   Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    40. |                   Reduce Output Operator           |
    41. |                     key expressions: _col0 (type: bigint), _col1 (type: bigint) |
    42. |                     sort order: ++                 |
    43. |                     Map-reduce partition columns: _col0 (type: bigint), _col1 (type: bigint) |
    44. |                     Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    45. |       Reduce Operator Tree:                        |
    46. |         Join Operator                              |
    47. |           condition map:                           |
    48. |                Left Semi Join 0 to 1               |
    49. |           keys:                                    |
    50. |             0 user_id (type: bigint), sex_id (type: bigint) |
    51. |             1 _col0 (type: bigint), _col1 (type: bigint) |
    52. |           outputColumnNames: _col0, _col1          |
    53. |           Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    54. |           File Output Operator                     |
    55. |             compressed: false                      |
    56. |             Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    57. |             table:                                 |
    58. |                 input format: org.apache.hadoop.mapred.SequenceFileInputFormat |
    59. |                 output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat |
    60. |                 serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe |
    61. |                                                    |
    62. |   Stage: Stage-0                                   |
    63. |     Fetch Operator                                 |
    64. |       limit: -1                                    |
    65. |       Processor Tree:                              |
    66. |         ListSink                                   |
    67. |                                                    |
    68. +----------------------------------------------------+
    69. 64 rows selected (0.121 seconds)



    EXISTS

    1. +----------------------------------------------------+
    2. |                      Explain                       |
    3. +----------------------------------------------------+
    4. | STAGE DEPENDENCIES:                                |
    5. |   Stage-1 is a root stage                          |
    6. |   Stage-0 depends on stages: Stage-1               |
    7. |                                                    |
    8. | STAGE PLANS:                                       |
    9. |   Stage: Stage-1                                   |
    10. |     Map Reduce                                     |
    11. |       Map Operator Tree:                           |
    12. |           TableScan                                |
    13. |             alias: a                               |
    14. |             filterExpr: (user_id is not null and sex_id is not null) (type: boolean) |
    15. |             Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    16. |             Filter Operator                        |
    17. |               predicate: (user_id is not null and sex_id is not null) (type: boolean) |
    18. |               Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    19. |               Reduce Output Operator               |
    20. |                 key expressions: user_id (type: bigint), sex_id (type: bigint) |
    21. |                 sort order: ++                     |
    22. |                 Map-reduce partition columns: user_id (type: bigint), sex_id (type: bigint) |
    23. |                 Statistics: Num rows: 6 Data size: 19 Basic stats: COMPLETE Column stats: NONE |
    24. |           TableScan                                |
    25. |             alias: b                               |
    26. |             filterExpr: (user_id is not null and sex_id is not null) (type: boolean) |
    27. |             Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    28. |             Filter Operator                        |
    29. |               predicate: (user_id is not null and sex_id is not null) (type: boolean) |
    30. |               Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    31. |               Select Operator                      |
    32. |                 expressions: user_id (type: bigint), sex_id (type: bigint) |
    33. |                 outputColumnNames: _col0, _col1    |
    34. |                 Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    35. |                 Group By Operator                  |
    36. |                   keys: _col0 (type: bigint), _col1 (type: bigint) |
    37. |                   mode: hash                       |
    38. |                   outputColumnNames: _col0, _col1  |
    39. |                   Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    40. |                   Reduce Output Operator           |
    41. |                     key expressions: _col0 (type: bigint), _col1 (type: bigint) |
    42. |                     sort order: ++                 |
    43. |                     Map-reduce partition columns: _col0 (type: bigint), _col1 (type: bigint) |
    44. |                     Statistics: Num rows: 3 Data size: 18 Basic stats: COMPLETE Column stats: NONE |
    45. |       Reduce Operator Tree:                        |
    46. |         Join Operator                              |
    47. |           condition map:                           |
    48. |                Left Semi Join 0 to 1               |
    49. |           keys:                                    |
    50. |             0 user_id (type: bigint), sex_id (type: bigint) |
    51. |             1 _col0 (type: bigint), _col1 (type: bigint) |
    52. |           outputColumnNames: _col0, _col1          |
    53. |           Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    54. |           File Output Operator                     |
    55. |             compressed: false                      |
    56. |             Statistics: Num rows: 6 Data size: 20 Basic stats: COMPLETE Column stats: NONE |
    57. |             table:                                 |
    58. |                 input format: org.apache.hadoop.mapred.SequenceFileInputFormat |
    59. |                 output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat |
    60. |                 serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe |
    61. |                                                    |
    62. |   Stage: Stage-0                                   |
    63. |     Fetch Operator                                 |
    64. |       limit: -1                                    |
    65. |       Processor Tree:                              |
    66. |         ListSink                                   |
    67. |                                                    |
    68. +----------------------------------------------------+
    69. 64 rows selected (0.147 seconds)



    可以看到两种方式的执行计划是一致的！！！









    Hive的join操作，left join,right join,inner join

    Hive的join操作，left join,right join,inner join

    hive执行引擎会将hql转化成mapreduce作业

    map side join除外，map负责分发数据，具体的join在reduce端进行

    1.如果多表基于不同的列做join,则无法在一轮mapreduce将相关数据shuffle到统一一个reducer,对于多表的join,hive会将前面的表缓存在reducer的内存中，然后后面的表会流式的进入reducer做join.为了防止oom,通常将大表放在最后。

    hive中分为map join和common join

    common join

    map阶段：

    读取源表数据，

    map输出以join on条件中的列为key,如果join有多个关联键，则以这些关联键的组合作为key.

    value为 join之后所关心的列，也会包含tag信息，用于标注value对应哪个表

    按key进行排序

    shuffle阶段：

    根据key进行hash,根据hash推送到不同的reduce中，保证两个表中相同的key在同一个reduce中

    reduce阶段：

    通过key完成join,通过tag来识别不同表的数据

    map join

    通常用于一个小表join大表，小表标准由hive.mapjoin.smalltable.filesize决定，设置hive.auto.convert.join为true,小表达到标准会自动转为mapjoin

    mapjoin可以看做broadcast join,将小表数据加载到内存，没有shuffle过程，加快处理速度，但是数据量大容易出现oom，

    普通join会有shuffle,影响效率，同时会出现数据倾斜

    今天关于'LEFT JOIN'vs'LEFT OUTER JOIN'的讲解已经结束，谢谢您的阅读，如果想了解更多关于(转载) Mysql----Join用法(Inner join,Left join,Right join, Cross join, Union模拟Full join)及---性能优化、Apache beam Join.leftOuterJoin，如何传递空白TableRow？、Hive_LEFT SEMI JOIN / LEFT OUTER JOIN 与 (IN / NOT IN), (EXISTS / NOT EXISTS ) 分析、Hive的join操作，left join,right join,inner join的相关知识，请在本站搜索。

    本文标签：

    上一篇3表联接与SUM和GROUP BY不起作用（连表group by）

    下一篇用yii中的CSqlDataProvider排序（select count 排序）

    相关文章
