android – 无法在导航抽屉的ActionBar中更改应用程序图标旁边的向上插入符号
我目前正在尝试按照Google IO 2013指南实施新的NavigationDrawer.我正在使用ActionbarSherlock.代码运行良好.唯一的问题是,当拉出导航抽屉时,我无法切换应用程序图标旁边的“向上”插入符号.我在下面粘贴我的整个代码.请帮助.
public class MainActivity extends SherlockFragmentActivity {
private DrawerLayout mDrawerLayout;
private ListView mDrawerList;
private ActionBarDrawerToggle mDrawerToggle;
private CharSequence mDrawerTitle;
private CharSequence mTitle;
private String[] mPlanetTitles;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
mTitle = mDrawerTitle = getTitle();
mPlanetTitles = getResources().getStringArray(R.array.planets_array);
mDrawerLayout = (DrawerLayout) findViewById(R.id.drawer_layout);
mDrawerList = (ListView) findViewById(R.id.drawer);
mDrawerLayout.setDrawerShadow(R.drawable.drawer_shadow,GravityCompat.START);
mDrawerList.setAdapter(new ArrayAdapter<String>(this,R.layout.drawer_list_item,mPlanetTitles));
mDrawerList.setonItemClickListener(new DrawerItemClickListener());
mDrawerToggle = new ActionBarDrawerToggle(this,/* host Activity */
mDrawerLayout,/* DrawerLayout object */
R.drawable.ic_drawer,/* nav drawer image to replace 'Up' caret */
R.string.drawer_open,/* "open drawer" description for accessibility */
R.string.drawer_close /* "close drawer" description for accessibility */
) {
public void onDrawerClosed(View view) {
getSupportActionBar().setTitle(mTitle);
supportInvalidateOptionsMenu();
}
public void onDrawerOpened(View drawerView) {
getSupportActionBar().setTitle(mDrawerTitle);
supportInvalidateOptionsMenu();
}
};
getSupportActionBar().setdisplayHomeAsUpEnabled(true);
getSupportActionBar().setHomeButtonEnabled(true);
mDrawerLayout.setDrawerListener(mDrawerToggle);
if (savedInstanceState == null) {
selectItem(0);
}
new Thread(new Runnable() {
@Override
public void run() {
prefs = getPreferences(MODE_PRIVATE);
opened = prefs.getBoolean(OPENED_KEY,false);
if(opened == false)
{
mDrawerLayout.openDrawer(mDrawerList);
}
}
}).start();
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
MenuInflater inflater = getSupportMenuInflater();
inflater.inflate(R.menu.main,menu);
return super.onCreateOptionsMenu(menu);
}
@Override
public boolean onPrepareOptionsMenu(Menu menu) {
boolean drawerOpen = mDrawerLayout.isDrawerOpen(mDrawerList);
menu.findItem(R.id.action_websearch).setVisible(!drawerOpen);
return super.onPrepareOptionsMenu(menu);
}
@Override
public boolean onoptionsItemSelected(final MenuItem item) {
if (mDrawerToggle.onoptionsItemSelected(getMenuItem(item))) {
return true;
}
switch (item.getItemId()) {
case R.id.action_websearch:
Intent intent = new Intent(Intent.ACTION_WEB_SEARCH);
intent.putExtra(SearchManager.QUERY,getSupportActionBar().getTitle());
if (intent.resolveActivity(getPackageManager()) != null) {
startActivity(intent);
} else {
Toast.makeText(this,R.string.app_not_available,Toast.LENGTH_LONG).show();
}
return true;
default:
return super.onoptionsItemSelected(item);
}
}
private android.view.MenuItem getMenuItem(final MenuItem item) {
return new android.view.MenuItem() {
@Override
public int getItemId() {
return item.getItemId();
}
public boolean isEnabled() {
return true;
}
@Override
public boolean collapseActionView() {
return false;
}
@Override
public boolean expandActionView() {
return false;
}
@Override
public ActionProvider getActionProvider() {
return null;
}
@Override
public View getActionView() {
return null;
}
@Override
public char getAlphabeticShortcut() {
return 0;
}
@Override
public int getGroupId() {
return 0;
}
@Override
public Drawable getIcon() {
return null;
}
@Override
public Intent getIntent() {
return null;
}
@Override
public ContextMenuInfo getMenuInfo() {
return null;
}
@Override
public char getNumericShortcut() {
return 0;
}
@Override
public int getorder() {
return 0;
}
@Override
public SubMenu getSubMenu() {
return null;
}
@Override
public CharSequence getTitle() {
return null;
}
@Override
public CharSequence getTitleCondensed() {
return null;
}
@Override
public boolean hasSubMenu() {
return false;
}
@Override
public boolean isActionViewExpanded() {
return false;
}
@Override
public boolean isCheckable() {
return false;
}
@Override
public boolean isChecked() {
return false;
}
@Override
public boolean isVisible() {
return false;
}
@Override
public android.view.MenuItem setActionProvider(ActionProvider actionProvider) {
return null;
}
@Override
public android.view.MenuItem setActionView(View view) {
return null;
}
@Override
public android.view.MenuItem setActionView(int resId) {
return null;
}
@Override
public android.view.MenuItem setAlphabeticShortcut(char alphaChar) {
return null;
}
@Override
public android.view.MenuItem setCheckable(boolean checkable) {
return null;
}
@Override
public android.view.MenuItem setChecked(boolean checked) {
return null;
}
@Override
public android.view.MenuItem setEnabled(boolean enabled) {
return null;
}
@Override
public android.view.MenuItem setIcon(Drawable icon) {
return null;
}
@Override
public android.view.MenuItem setIcon(int iconRes) {
return null;
}
@Override
public android.view.MenuItem setIntent(Intent intent) {
return null;
}
@Override
public android.view.MenuItem setNumericShortcut(char numericChar) {
return null;
}
@Override
public android.view.MenuItem setonActionExpandListener(OnActionExpandListener listener) {
return null;
}
@Override
public android.view.MenuItem setonMenuItemClickListener(OnMenuItemClickListener menuItemClickListener) {
return null;
}
@Override
public android.view.MenuItem setShortcut(char numericChar,char alphaChar) {
return null;
}
@Override
public void setShowAsAction(int actionEnum) {
}
@Override
public android.view.MenuItem setShowAsActionFlags(int actionEnum) {
return null;
}
@Override
public android.view.MenuItem setTitle(CharSequence title) {
return null;
}
@Override
public android.view.MenuItem setTitle(int title) {
return null;
}
@Override
public android.view.MenuItem setTitleCondensed(CharSequence title) {
return null;
}
@Override
public android.view.MenuItem setVisible(boolean visible) {
return null;
}
};
}
/* The click listner for ListView in the navigation drawer */
private class DrawerItemClickListener implements ListView.OnItemClickListener {
@Override
public void onItemClick(AdapterView<?> parent,View view,int position,long id) {
selectItem(position);
}
}
private void selectItem(int position) {
// update the main content by replacing fragments
Fragment fragment = new PlanetFragment();
Bundle args = new Bundle();
args.putInt(PlanetFragment.ARG_PLANET_NUMBER,position);
fragment.setArguments(args);
FragmentManager fragmentManager = getSupportFragmentManager();
fragmentManager.beginTransaction().replace(R.id.content_frame,fragment).commit();
// update selected item and title,then close the drawer
mDrawerList.setItemChecked(position,true);
setTitle(mPlanetTitles[position]);
mDrawerLayout.closeDrawer(mDrawerList);
}
@Override
public void setTitle(CharSequence title) {
mTitle = title;
getSupportActionBar().setTitle(mTitle);
}
/**
* When using the ActionBarDrawerToggle,you must call it during
* onPostCreate() and onConfigurationChanged()...
*/
@Override
protected void onPostCreate(Bundle savedInstanceState) {
super.onPostCreate(savedInstanceState);
// Sync the toggle state after onRestoreInstanceState has occurred.
mDrawerToggle.syncState();
}
@Override
public void onConfigurationChanged(Configuration newConfig) {
super.onConfigurationChanged(newConfig);
// Pass any configuration change to the drawer toggls
mDrawerToggle.onConfigurationChanged(newConfig);
}
/**
* Fragment that appears in the "content_frame",shows a planet
*/
public static class PlanetFragment extends SherlockFragment {
public static final String ARG_PLANET_NUMBER = "planet_number";
public PlanetFragment() {
// Empty constructor required for fragment subclasses
}
@Override
public View onCreateView(LayoutInflater inflater,ViewGroup container,Bundle savedInstanceState) {
View rootView = inflater.inflate(R.layout.fragment_planet,container,false);
int i = getArguments().getInt(ARG_PLANET_NUMBER);
String planet = getResources().getStringArray(R.array.planets_array)[i];
// change int imageId = getResources().getIdentifier(planet.toLowerCase(Locale.getDefault()),"drawable",getActivity().getPackageName());
int imageId = getResources().getIdentifier("tempmap",getActivity().getPackageName());
// change ((ImageView) rootView.findViewById(R.id.image)).setimageResource(imageId);
((ImageView) rootView.findViewById(R.id.image)).setimageResource(imageId);
// change getActivity().setTitle(planet);
getActivity().setTitle("MapView");
return rootView;
}
}
}
解决方法
如果你不需要移动3行(比如在gmail应用程序中),你可以添加：
<item name="homeAsUpIndicator">@drawable/ic_drawer</item> <item name="android:homeAsUpIndicator">@drawable/ic_drawer</item>
在你的活动主题中.我更喜欢在我的应用程序中使用另一个库.
ic_drawer可以从这里下载：
http://developer.android.com/training/implementing-navigation/nav-drawer.html
Android ActionBar /工具栏消失在我的应用程序中
所以我有一个应用程序.目前有3个活动…我正在用意图从另一个活动中启动活动
MainActivity > ChallongeLogin > ChallongeEvents
在我的MainActivity和ChallongeLogin中,应用程序顶部有一个大栏,列出了我的应用程序名称.但是,当我最终阅读ChallongeEvents时,该条消失了……我不记得做任何特别的事情使该条消失了.为什么消失了？
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.testing.testingapp">
<uses-permission android:name="android.permission.INTERNET" />
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:supportsRtl="true"
android:theme="@style/AppTheme">
<activity
android:screenorientation="portrait"
android:name=".MainActivity">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity
android:screenorientation="portrait"
android:name=".ChallongeLogin" />
<activity
android:screenorientation="portrait"
android:name=".ChallongeEvents" />
</application>
</manifest>
解决方法:
根据您的要求,您必须扩展AppCompatActivity而不是Activity.
public class ActivityName extends AppCompatActivity {
// ...
}
AppCompatActivity is from the appcompat-v7 library. Principally, this
offers a backport of the action bar. Since the native action bar was
added in API Level 11, you do not need AppCompatActivity for that.
However, current versions of appcompat-v7 also add a limited backport
of the Material Design aesthetic, in terms of the action bar and
varIoUs widgets. There are pros and cons of using appcompat-v7, well
beyond the scope of this specific Stack Overflow answer.
参考
07001
Android NavigationView 导航抽屉的使用
1.抽屉布局(drawerlayout)
activity_main.xml中的总体布局设置为drawerlayout
2.拖入NavigationView组件(在container中)
3.给NavigationView组件设置头部布局
<1>在app--->src--->main-->res-->layout中新建NavigationView组件headlayout对应的head_layout.xml布局文件
<2>在activity_main.xml文件中添加head_layout.xml的对应关系
app:headerLayout="@layout/head_layout"
4.给NavigationView组件添加菜单
<1>app--->src--->main--->res,选中res,右击new--->android resource file
<2>设置抽屉组件在屏幕的左侧
android:layout_gravity="left"
<3>在activity_main.xml文件中添加menu_navi.xml的对应关系
app:menu="@menu/menu_navi"
<4>navigation总体xml代码设置
<android.support.design.widget.NavigationView
android:id="@+id/navi"
android:layout_width="wrap_content"
android:layout_height="match_parent"
android:layout_gravity="left"
app:headerLayout="@layout/head_layout"
app:menu="@menu/menu_navi" />
5.java后台代码
public class MainActivity extends AppCompatActivity {
NavigationView navigationView;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
navigationView=findViewById(R.id.navi); //天坑：navigation一定要初始化
navigationView.setItemIconTintList(null); //设置navigationView菜单的图标
View view=navigationView.getHeaderView(0); //获取抽屉的头部
ImageView imageView=view.findViewById(R.id.imageView); //获取头部的图片组件
imageView.setonClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Toast.makeText(MainActivity.this,"您选择的是头部组件",Toast.LENGTH_SHORT).show();
}
});
final TextView textView=view.findViewById(R.id.textView3);
navigationView.setNavigationItemSelectedListener(new NavigationView.OnNavigationItemSelectedListener() {
@Override
public boolean onNavigationItemSelected(@NonNull MenuItem menuItem) {
textView.setText("您选择的是："+menuItem.getTitle().toString());
return true;
}
});
}
}

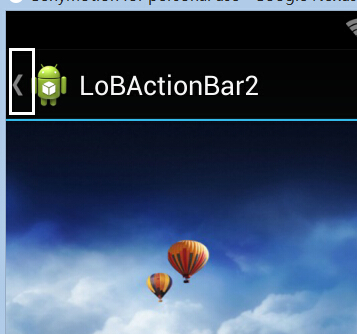

Android UI ActionBar功能-Action Bar 左上角的向上或返回按钮
ActionBar在左上角还提供了一个向上或返回的按钮，默认情况下是隐藏的需要在代码中开启：
官方文档：http://wear.techbrood.com/training/basics/actionbar/adding-buttons.html#UpNav
向上功能：
先打开功能选项，设置ActionBar的DisplayHomeAsUpEnabled=true：
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
getActionBar().setDisplayHomeAsUpEnabled(true);
}public class ParentActivity extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.parent_activity);
}
}<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical" >
<TextView android:layout_width="match_parent"
android:layout_height="match_parent"
android:text="parent activity">
</TextView>

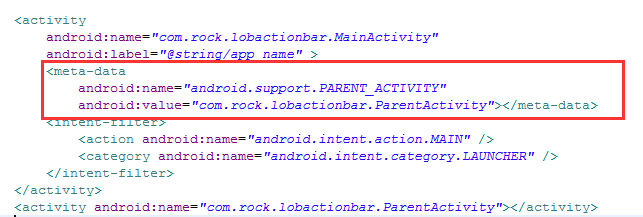

</LinearLayout>然后在AndroidManifest.xml文件中配置向上功能：
详细请查看上方的官方说明文档；
返回功能：
先打开功能选项，设置ActionBar的DisplayHomeAsUpEnabled=true：
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
getActionBar().setDisplayHomeAsUpEnabled(true);
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case android.R.id.home:
finish();
break;
default:
break;
}
return super.onOptionsItemSelected(item);
}
android – ActionBarCompat – 应用程序图标操作(点击)不能在4.0设备上工作
我有
Android ActionBarCompat项目的这个问题：在Android 4.0的模拟器上,单击应用程序图标不会导致任何onoptionsItemSelected事件,而它适用于所有其他操作系统版本.
任何输入都非常感谢！
解决方法
您是否看到应用图标有任何触摸反馈？ (当你按下它会发光吗？)
由于许多活动不使用操作栏主页按钮,因此在Android 4.0上运行的API 14应用程序中,默认情况下禁用. (这样,用户不要尝试按它,看到它发光,并想知道为什么没有发生.)想要使用这个应用程序应该调用ActionBar#setHomeButtonEnabled(true).
我们应该修改ActionBarCompat样本,使之更清楚.让您开始运行的一个简单方法是修改ActionBarHelperICS.java并添加以下内容：
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
mActivity.getActionBar().setHomeButtonEnabled(true);
}
在一个应用程序中,您需要更多的控制来打开和关闭此功能,您将需要进行进一步的更改.
今天关于android – 无法在导航抽屉的ActionBar中更改应用程序图标旁边的向上插入符号的介绍到此结束，谢谢您的阅读，有关Android ActionBar /工具栏消失在我的应用程序中、Android NavigationView 导航抽屉的使用、Android UI ActionBar功能-Action Bar 左上角的向上或返回按钮、android – ActionBarCompat – 应用程序图标操作(点击)不能在4.0设备上工作等更多相关知识的信息可以在本站进行查询。
本文标签：
![[转帖]Ubuntu 安装 Wine方法（ubuntu如何安装wine）](https://www.gvkun.com/zb_users/cache/thumbs/4c83df0e2303284d68480d1b1378581d-180-120-1.jpg)
