了解servlet容器（servlet容器的概念和作用）

作为一个UI开发人员以及对Java知识非常了解的人，我如何简单地理解servlet容器到底是什么？

我听说过Weblogic，JBoss等是servlet容器，但是不确定这到底意味着什么。这是否意味着任何中间件技术？

请你帮助我好吗。

答案1

Servlet容器是实现Java Servlet规范的某些版本的应用程序服务器。

简而言之，servlet规范定义了一种编程模型，该模型允许开发人员编写处理请求（几乎总是HTTP请求）的组件，例如servlet。然后可以将这些组件声明到容器中，并处理与连接和管理这些组件相关的许多繁琐任务，以便它们可以处理这些请求。

18、配置嵌入式servlet容器(2)

使用其他Servlet容器

 替换为其他嵌入式Servlet容器

Jetty：

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
    <exclusions>
        <exclusion>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <groupId>org.springframework.boot</groupId>
        </exclusion>
    </exclusions>
</dependency>

<!--引入其他的Servlet -->
<dependency>
     <artifactId>spring‐boot‐starter‐jetty</artifactId>
     <groupId>org.springframework.boot</groupId>
</dependency>

Undertow：

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
    <exclusions>
        <exclusion>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <groupId>org.springframework.boot</groupId>
        </exclusion>
    </exclusions>
</dependency>

<!--引入其他的Servlet -->
<dependency>
     <artifactId>spring‐boot‐starter‐undertow<</artifactId>
     <groupId>org.springframework.boot</groupId>
</dependency>

右键排除依赖

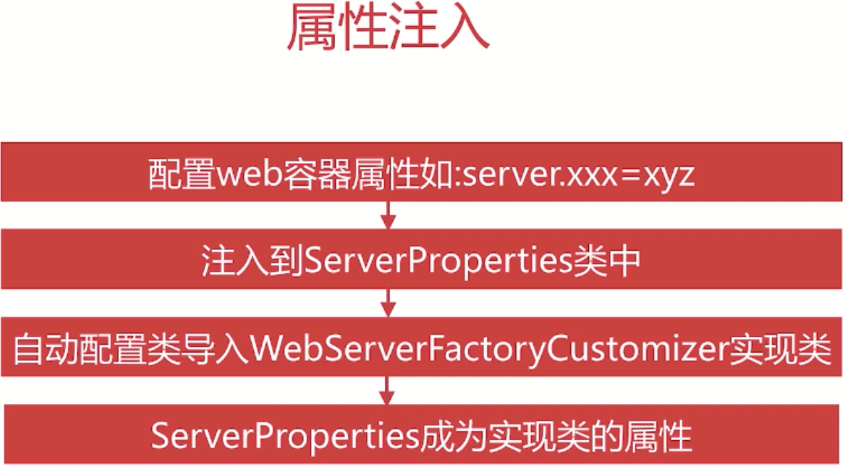

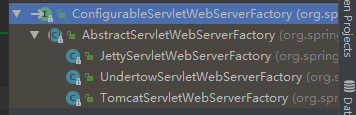

嵌入式Servlet配置原理：

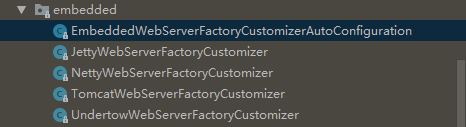

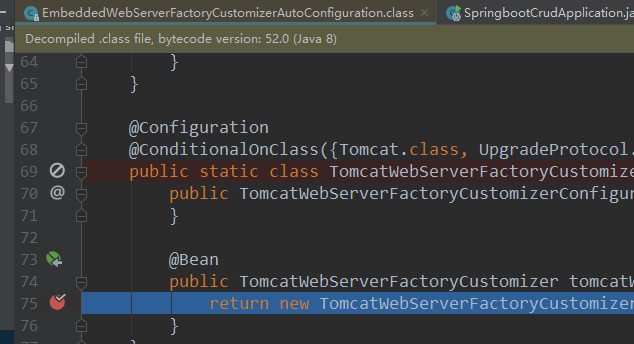

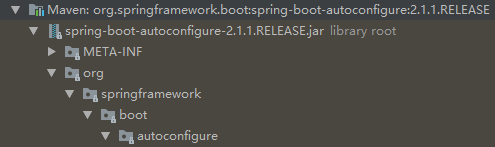

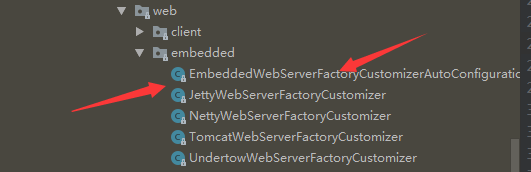

Servelt容器的自动配置类

@Configuration
@ConditionalOnWebApplication
@EnableConfigurationProperties({ServerProperties.class})
public class EmbeddedWebServerFactoryCustomizerAutoConfiguration {
    public EmbeddedWebServerFactoryCustomizerAutoConfiguration() {
    }

    @Configuration
    @ConditionalOnClass({HttpServer.class})
    public static class NettyWebServerFactoryCustomizerConfiguration {
        public NettyWebServerFactoryCustomizerConfiguration() {
        }

        @Bean
        public NettyWebServerFactoryCustomizer nettyWebServerFactoryCustomizer(Environment environment, ServerProperties serverProperties) {
            return new NettyWebServerFactoryCustomizer(environment, serverProperties);
        }
    }

    @Configuration
    @ConditionalOnClass({Undertow.class, SslClientAuthMode.class})
    public static class UndertowWebServerFactoryCustomizerConfiguration {
        public UndertowWebServerFactoryCustomizerConfiguration() {
        }

        @Bean
        public UndertowWebServerFactoryCustomizer undertowWebServerFactoryCustomizer(Environment environment, ServerProperties serverProperties) {
            return new UndertowWebServerFactoryCustomizer(environment, serverProperties);
        }
    }

    @Configuration
    @ConditionalOnClass({Server.class, Loader.class, WebAppContext.class})
    public static class JettyWebServerFactoryCustomizerConfiguration {
        public JettyWebServerFactoryCustomizerConfiguration() {
        }

        @Bean
        public JettyWebServerFactoryCustomizer jettyWebServerFactoryCustomizer(Environment environment, ServerProperties serverProperties) {
            return new JettyWebServerFactoryCustomizer(environment, serverProperties);
        }
    }

    @Configuration
    @ConditionalOnClass({Tomcat.class, UpgradeProtocol.class})
    public static class TomcatWebServerFactoryCustomizerConfiguration {
        public TomcatWebServerFactoryCustomizerConfiguration() {
        }

        @Bean
        public TomcatWebServerFactoryCustomizer tomcatWebServerFactoryCustomizer(Environment environment, ServerProperties serverProperties) {
            return new TomcatWebServerFactoryCustomizer(environment, serverProperties);
        }
    }
}

TomcatWebServerFactoryCustomizer.java

public class TomcatWebServerFactoryCustomizer implements WebServerFactoryCustomizer<ConfigurableTomcatWebServerFactory>, Ordered {
    private final Environment environment;
    private final ServerProperties serverProperties;

    public TomcatWebServerFactoryCustomizer(Environment environment, ServerProperties serverProperties) {
        this.environment = environment;
        this.serverProperties = serverProperties;
    }

    public int getOrder() {
        return 0;
    }

    public void customize(ConfigurableTomcatWebServerFactory factory) {
        ServerProperties properties = this.serverProperties;
        Tomcat tomcatProperties = properties.getTomcat();
        PropertyMapper propertyMapper = PropertyMapper.get();
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getBasedir).whenNonNull().to(factory::setBaseDirectory);
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getBackgroundProcessorDelay).whenNonNull().as(Duration::getSeconds).as(Long::intValue).to(factory::setBackgroundProcessorDelay);
        this.customizeRemoteIpValve(factory);
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getMaxThreads).when(this::isPositive).to((maxThreads) -> {
            this.customizeMaxThreads(factory, tomcatProperties.getMaxThreads());
        });
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getMinSpareThreads).when(this::isPositive).to((minSpareThreads) -> {
            this.customizeMinThreads(factory, minSpareThreads);
        });
        propertyMapper.from(this::determineMaxHttpHeaderSize).whenNonNull().asInt(DataSize::toBytes).when(this::isPositive).to((maxHttpHeaderSize) -> {
            this.customizeMaxHttpHeaderSize(factory, maxHttpHeaderSize);
        });
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getMaxSwallowSize).whenNonNull().asInt(DataSize::toBytes).to((maxSwallowSize) -> {
            this.customizeMaxSwallowSize(factory, maxSwallowSize);
        });
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getMaxHttpPostSize).asInt(DataSize::toBytes).when((maxHttpPostSize) -> {
            return maxHttpPostSize != 0;
        }).to((maxHttpPostSize) -> {
            this.customizeMaxHttpPostSize(factory, maxHttpPostSize);
        });
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getAccesslog).when(Accesslog::isEnabled).to((enabled) -> {
            this.customizeAccessLog(factory);
        });
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getUriEncoding).whenNonNull().to(factory::setUriEncoding);
        properties.getClass();
        propertyMapper.from(properties::getConnectionTimeout).whenNonNull().to((connectionTimeout) -> {
            this.customizeConnectionTimeout(factory, connectionTimeout);
        });
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getMaxConnections).when(this::isPositive).to((maxConnections) -> {
            this.customizeMaxConnections(factory, maxConnections);
        });
        tomcatProperties.getClass();
        propertyMapper.from(tomcatProperties::getAcceptCount).when(this::isPositive).to((acceptCount) -> {
            this.customizeAcceptCount(factory, acceptCount);
        });
        this.customizeStaticResources(factory);
        this.customizeErrorReportValve(properties.getError(), factory);
    }

.......
}

嵌入式Servlet容器启动原理；

private void refreshContext(ConfigurableApplicationContext context) {
    this.refresh(context);
    if (this.registerShutdownHook) {
        try {
            context.registerShutdownHook();
        } catch (AccessControlException var3) {
            ;
        }
    }
}

19、配置嵌入式servlet容器(下)

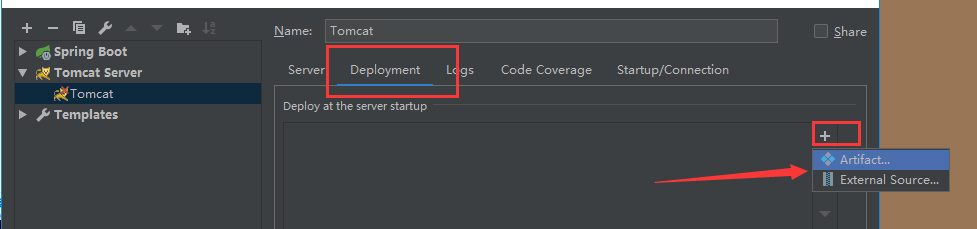

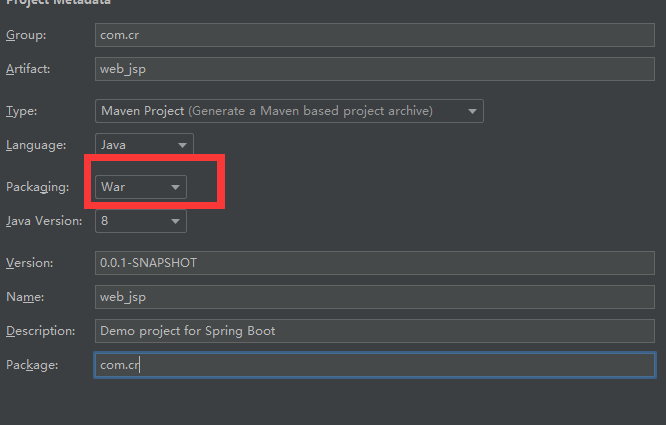

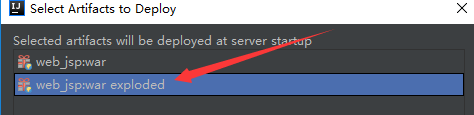

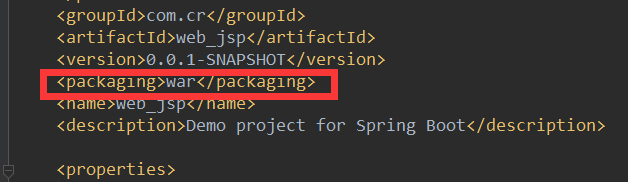

使用外置的Servlet

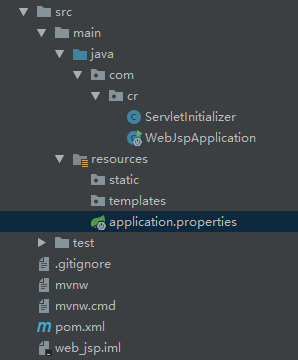

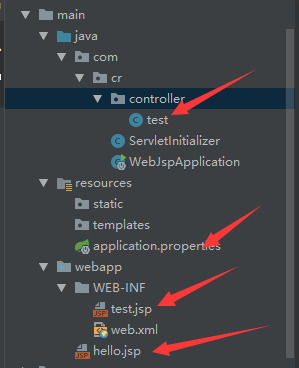

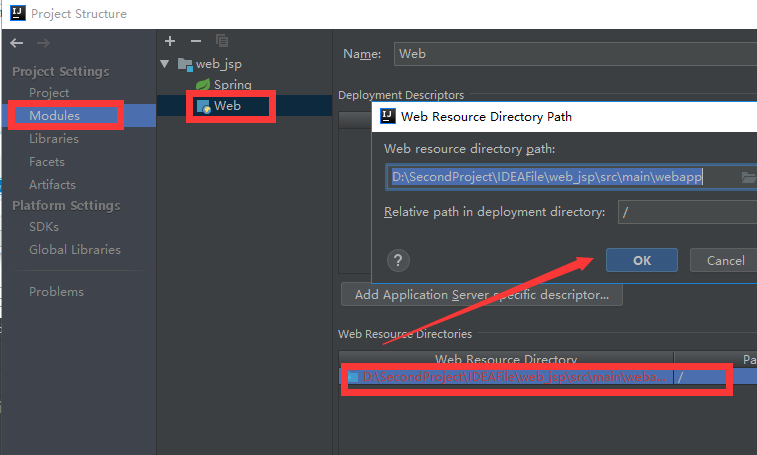

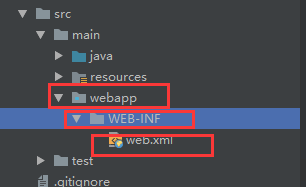

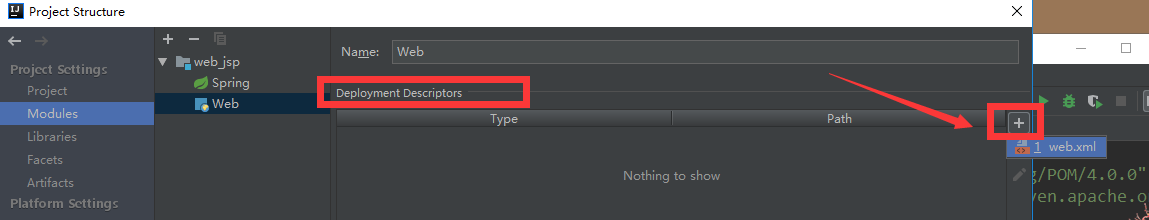

 添加xml配置文件

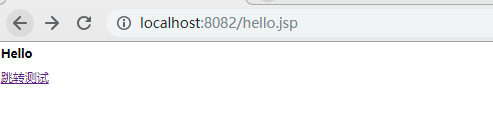

 完成hello.jsp页面的跳转

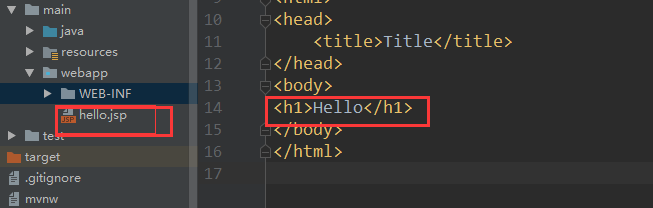

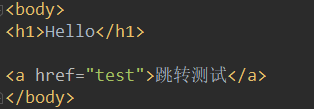

hello.jsp

test.jsp

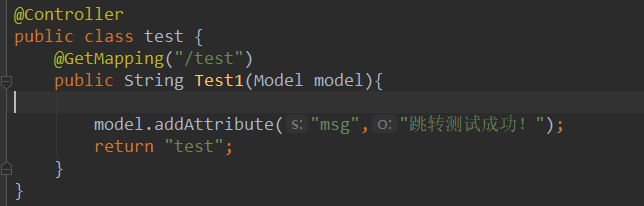

 test.java

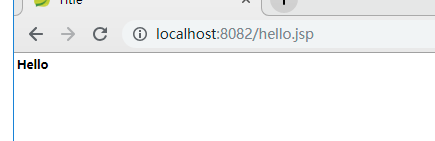

 测试：

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-tomcat</artifactId>
    <scope>provided</scope>
</dependency>

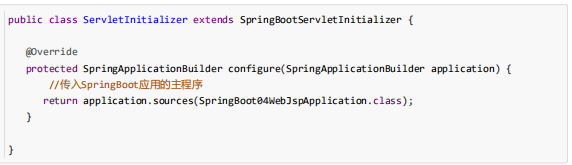

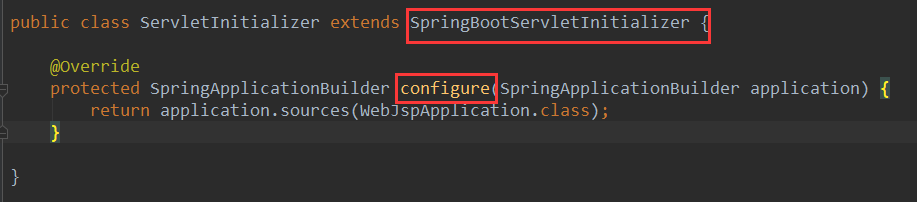

 3）、必须编写一个SpringBootServletInitializer的子类，并调用configure方法

4）、启动服务器就可以使用

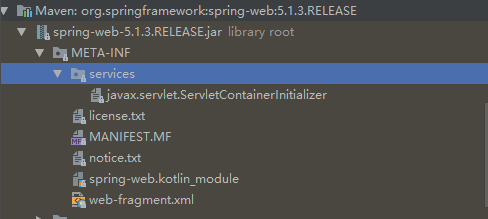

原理：

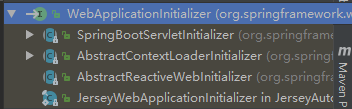

流程：

@HandlesTypes({WebApplicationInitializer.class})
public class SpringServletContainerInitializer implements ServletContainerInitializer {
    public SpringServletContainerInitializer() {
    }

    public void onStartup(@Nullable Set<Class<?>> webAppInitializerClasses, ServletContext servletContext) throws ServletException {
        List<WebApplicationInitializer> initializers = new LinkedList();
        Iterator var4;
        if (webAppInitializerClasses != null) {
            var4 = webAppInitializerClasses.iterator();

            while(var4.hasNext()) {
                Class<?> waiClass = (Class)var4.next();
                if (!waiClass.isInterface() && !Modifier.isAbstract(waiClass.getModifiers()) && WebApplicationInitializer.class.isAssignableFrom(waiClass)) {
                    try {
                        initializers.add((WebApplicationInitializer)ReflectionUtils.accessibleConstructor(waiClass, new Class[0]).newInstance());
                    } catch (Throwable var7) {
                        throw new ServletException("Failed to instantiate WebApplicationInitializer class", var7);
                    }
                }
            }
        }

        if (initializers.isEmpty()) {
            servletContext.log("No Spring WebApplicationInitializer types detected on classpath");
        } else {
            servletContext.log(initializers.size() + " Spring WebApplicationInitializers detected on classpath");
            AnnotationAwareOrderComparator.sort(initializers);
            var4 = initializers.iterator();

            while(var4.hasNext()) {
                WebApplicationInitializer initializer = (WebApplicationInitializer)var4.next();
                initializer.onStartup(servletContext);
}}}}

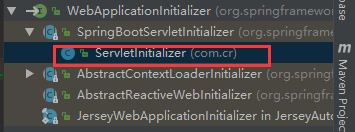

public class ServletInitializer extends SpringBootServletInitializer {
    @Override
    protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
        return application.sources(WebJspApplication.class);
    }
}

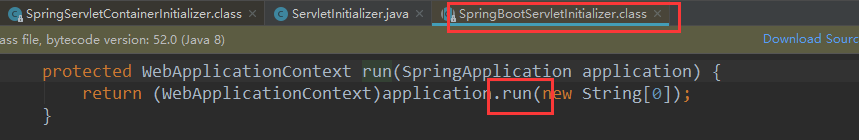

 SpringBootServletInitializer.java

public void onStartup(ServletContext servletContext) throws ServletException {
    this.logger = LogFactory.getLog(this.getClass());
    WebApplicationContext rootAppContext = this.createRootApplicationContext(servletContext);
    if (rootAppContext != null) {
        servletContext.addListener(new ContextLoaderListener(rootAppContext) {
            public void contextInitialized(ServletContextEvent event) {
            }
        });
    } else {
        this.logger.debug("No ContextLoaderListener registered, as createRootApplicationContext() did not return an application context");
    }
}

.....

protected WebApplicationContext createRootApplicationContext(
      ServletContext servletContext) {
    //1、创建SpringApplicationBuilder
   SpringApplicationBuilder builder = createSpringApplicationBuilder();
   StandardServletEnvironment environment = new StandardServletEnvironment();
   environment.initPropertySources(servletContext, null);
   builder.environment(environment);
   builder.main(getClass());
   ApplicationContext parent = getExistingRootWebApplicationContext(servletContext);
   if (parent != null) {
      this.logger.info("Root context already created (using as parent).");
      servletContext.setAttribute(
            WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, null);
      builder.initializers(new ParentContextApplicationContextInitializer(parent));
   }
   builder.initializers(
         new ServletContextApplicationContextInitializer(servletContext));
   builder.contextClass(AnnotationConfigEmbeddedWebApplicationContext.class);

    //调用configure方法，子类重写了这个方法，将SpringBoot的主程序类传入了进来
   builder = configure(builder);

    //使用builder创建一个Spring应用
   SpringApplication application = builder.build();
   if (application.getSources().isEmpty() && AnnotationUtils
         .findAnnotation(getClass(), Configuration.class) != null) {
      application.getSources().add(getClass());
   }
   Assert.state(!application.getSources().isEmpty(),
         "No SpringApplication sources have been defined. Either override the "
               + "configure method or add an @Configuration annotation");
   // Ensure error pages are registered
   if (this.registerErrorPageFilter) {
      application.getSources().add(ErrorPageFilterConfiguration.class);
   }
    //启动Spring应用
   return run(application);
}

public ConfigurableApplicationContext run(String... args) {
    StopWatch stopWatch = new StopWatch();
    stopWatch.start();
    ConfigurableApplicationContext context = null;
    Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList();
    this.configureHeadlessProperty();
    SpringApplicationRunListeners listeners = this.getRunListeners(args);
    listeners.starting();

    Collection exceptionReporters;
    try {
        ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
        ConfigurableEnvironment environment = this.prepareEnvironment(listeners, applicationArguments);
        this.configureIgnoreBeanInfo(environment);
        Banner printedBanner = this.printBanner(environment);
        context = this.createApplicationContext();
        exceptionReporters = this.getSpringFactoriesInstances(SpringBootExceptionReporter.class, new Class[]{ConfigurableApplicationContext.class}, context);
        this.prepareContext(context, environment, listeners, applicationArguments, printedBanner);

//刷新容器的初始化
 this.refreshContext(context);
        this.afterRefresh(context, applicationArguments);
        stopWatch.stop();
        if (this.logStartupInfo) {
            (new StartupInfoLogger(this.mainApplicationClass)).logStarted(this.getApplicationLog(), stopWatch);
        }

        listeners.started(context);
        this.callRunners(context, applicationArguments);
    } catch (Throwable var10) {
        this.handleRunFailure(context, var10, exceptionReporters, listeners);
        throw new IllegalStateException(var10);
    }

    try {
        listeners.running(context);
        return context;
    } catch (Throwable var9) {
        this.handleRunFailure(context, var9, exceptionReporters, (SpringApplicationRunListeners)null);
        throw new IllegalStateException(var9);
    }
}

8、Servlet容器启动解析

1.1、简介

SpringBoot1.x只区分web环境和非web环境,而在2.x版本中引入了Reactive环境,即响应式环境.那么现在SpringBoot支持三种环境:
Servlet的web环境、Reactive的web环境以及非web环境.90%以上的公司使用的是Servlet的web环境,而该环境默认使用的是tomcat容器,
本章内容主要是介绍Servlet容器启动流程.

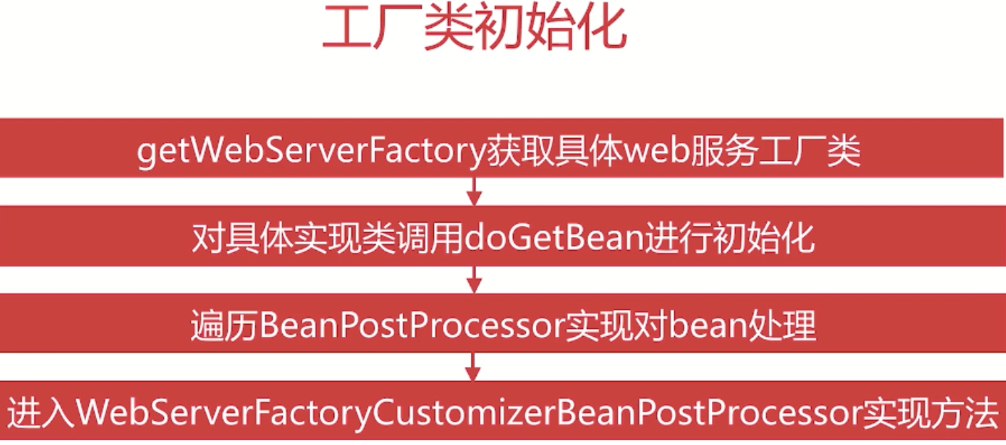

1.2、全局流程解析

// 容器刷新的核心流程,之前已经分析过了
public void refresh() throws BeansException, IllegalStateException {
    synchronized (this.startupShutdownMonitor) {
       // Prepare this context for refreshing.
       prepareRefresh();

       // Tell the subclass to refresh the internal bean factory.
       ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

       // Prepare the bean factory for use in this context.
       prepareBeanFactory(beanFactory);

       try {
           // Allows post-processing of the bean factory in context subclasses.
           postProcessBeanFactory(beanFactory);

           // Invoke factory processors registered as beans in the context.
           invokeBeanFactoryPostProcessors(beanFactory);

           // Register bean processors that intercept bean creation.
           registerBeanPostProcessors(beanFactory);

           // Initialize message source for this context.
           initMessageSource();

           // Initialize event multicaster for this context.
           initApplicationEventMulticaster();

           // Initialize other special beans in specific context subclasses.
	   // 走到这里,这里会启动web服务器
           onRefresh();

           // Check for listener beans and register them.
           registerListeners();

           // Instantiate all remaining (non-lazy-init) singletons.
           finishBeanFactoryInitialization(beanFactory);

           // Last step: publish corresponding event.
           finishRefresh();
      }
   }
}

// 走到这里,这里会启动web服务器
onRefresh();

protected void onRefresh() {
    super.onRefresh();
    try {
        createWebServer();
    }
}

private void createWebServer() {
    // 刚开始这两个属性都为null
    WebServer webServer = this.webServer;
    ServletContext servletContext = getServletContext();
    if (webServer == null && servletContext == null) {
	// 走到这步获取factory
        ServletWebServerFactory factory = getWebServerFactory();
        this.webServer = factory.getWebServer(getSelfInitializer());
    }
    else if (servletContext != null) {
        try {
            getSelfInitializer().onStartup(servletContext);
        }
    }
    initPropertySources();
}

protected ServletWebServerFactory getWebServerFactory() {
    // Use bean names so that we don''t consider the hierarchy
    // 默认返回只有一个,tomcatServletWebServerFactory,下面第三节会分析这个bean定义什么时候被加载到容器中
    String[] beanNames = getBeanFactory().getBeanNamesForType(ServletWebServerFactory.class);
    if (beanNames.length == 0) {
	// 抛异常
    }
    if (beanNames.length > 1) {
	// 抛异常
    }
    // 调用getBean创建工厂类实例
    return getBeanFactory().getBean(beanNames[0], ServletWebServerFactory.class);
}

// this.webServer = factory.getWebServer(getSelfInitializer())
// 调用这个创建webServer
public WebServer getWebServer(ServletContextInitializer... initializers) {
    // 创建一个tomcat
    Tomcat tomcat = new Tomcat();
    // 设置基础目录等属性
    File baseDir = (this.baseDirectory != null) ? this.baseDirectory : createTempDir("tomcat");
    tomcat.setBaseDir(baseDir.getAbsolutePath());
    Connector connector = new Connector(this.protocol);
    tomcat.getService().addConnector(connector);
    customizeConnector(connector);
    tomcat.setConnector(connector);
    tomcat.getHost().setAutoDeploy(false);
    configureEngine(tomcat.getEngine());
    for (Connector additionalConnector : this.additionalTomcatConnectors) {
        tomcat.getService().addConnector(additionalConnector);
    }
    prepareContext(tomcat.getHost(), initializers);
    return getTomcatWebServer(tomcat);
}

protected TomcatWebServer getTomcatWebServer(Tomcat tomcat) {
    // 这步就创建一个TomcatWebServer,里面还会做一些事情,以后分析
    return new TomcatWebServer(tomcat, getPort() >= 0);
}

 initPropertySources();

 protected void initPropertySources() {
    ConfigurableEnvironment env = getEnvironment();
    if (env instanceof ConfigurableWebEnvironment) {
        ((ConfigurableWebEnvironment) env).initPropertySources(this.servletContext, null);
    }
}

public void initPropertySources(@Nullable ServletContext servletContext, @Nullable ServletConfig servletConfig) {
    WebApplicationContextUtils.initServletPropertySources(getPropertySources(), servletContext, servletConfig);
}

public static void initServletPropertySources(MutablePropertySources sources,
                              @Nullable ServletContext servletContext, @Nullable ServletConfig servletConfig) {

    // servletContextInitParams
    String name = StandardServletEnvironment.SERVLET_CONTEXT_PROPERTY_SOURCE_NAME;
    // 判断servletContext不为null且包含这个servletContextInitParams属性集
    if (servletContext != null && sources.contains(name) && sources.get(name) instanceof StubPropertySource) {
	// 封装一个ServletContextPropertySource属性集替换原有的
        sources.replace(name, new ServletContextPropertySource(name, servletContext));
    }
    name = StandardServletEnvironment.SERVLET_CONFIG_PROPERTY_SOURCE_NAME;
    // servletConfig默认为null
    if (servletConfig != null && sources.contains(name) && sources.get(name) instanceof StubPropertySource) {
        sources.replace(name, new ServletConfigPropertySource(name, servletConfig));
    }
}

// onRefresh方法结束后,我们看finishRefresh方法
// Last step: publish corresponding event.
finishRefresh();

protected void finishRefresh() {
    super.finishRefresh();
    WebServer webServer = startWebServer();
    if (webServer != null) {
	// 发布Server初始完毕事件
        publishEvent(new ServletWebServerInitializedEvent(webServer, this));
    }
}

private WebServer startWebServer() {
    WebServer webServer = this.webServer;
    if (webServer != null) {
        webServer.start();
    }
    return webServer;
}

1.3、web容器工厂类加载解析

// 默认返回只有一个,tomcatServletWebServerFactory,那么这个bean定义什么时候被加载到容器中
String[] beanNames = getBeanFactory().getBeanNamesForType(ServletWebServerFactory.class);

// 它是通过@Import注解导入到容器中的
public void parse(Set<beandefinitionholder> configCandidates) {
    for (BeanDefinitionHolder holder : configCandidates) {
        BeanDefinition bd = holder.getBeanDefinition();
        try {
            if (bd instanceof AnnotatedBeanDefinition) {
               parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
            }
            else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
               parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
            }
            else {
               parse(bd.getBeanClassName(), holder.getBeanName());
            }
       }
    }
    // 这边会处理@Import注解导入的配置类
    this.deferredImportSelectorHandler.process();
}

public void process() {
    List<deferredimportselectorholder> deferredImports = this.deferredImportSelectors;
    this.deferredImportSelectors = null;
    try {
        if (deferredImports != null) {
           DeferredImportSelectorGroupingHandler handler = new DeferredImportSelectorGroupingHandler();
           deferredImports.sort(DEFERRED_IMPORT_COMPARATOR);
	   // 排序并依此遍历调用register方法
           deferredImports.forEach(handler::register);
           handler.processGroupImports();
        }
    }
    finally {
        this.deferredImportSelectors = new ArrayList<>();
    }
}

public void register(DeferredImportSelectorHolder deferredImport) {
     // 这个返回的Selector就是AutoConfigurationImportSelector,这也是@SpringBootApplication上通过@Import注解
     // 导入的Selector. getImportGroup返回的是AutoConfigurationGroup.class
     Class<? extends Group> group = deferredImport.getImportSelector().getImportGroup();
     // computeIfAbsent就是不存在就创建,这边也是创建一个grouping
     DeferredImportSelectorGrouping grouping = this.groupings.computeIfAbsent(
                                                   (group != null ? group : deferredImport),
                                                   key -> new DeferredImportSelectorGrouping(createGroup(group)));
     // this.deferredImports.add(deferredImport);
     // 加入到了deferredImports中,List<deferredimportselectorholder> deferredImports = new ArrayList<>()
     grouping.add(deferredImport);
     // 放入到configurationClasses中
     this.configurationClasses.put(deferredImport.getConfigurationClass().getMetadata(),
                                                                         deferredImport.getConfigurationClass());
}

// 这边主要是构造了一个grouping,在下一步进行处理
deferredImports.forEach(handler::register);
handler.processGroupImports();

public void processGroupImports() {
    for (DeferredImportSelectorGrouping grouping : this.groupings.values()) {
	 // 下面先分析这个getImports方法
         grouping.getImports().forEach(entry -> {
             ConfigurationClass configurationClass = this.configurationClasses.get(entry.getMetadata());
             try {
                 processImports(configurationClass, asSourceClass(configurationClass),
                 asSourceClasses(entry.getImportClassName()), false);
             }
         });
    }
}

public Iterable<group.entry> getImports() {
    // 这边的deferredImports是通过grouping.add(deferredImport)添加进去的
    for (DeferredImportSelectorHolder deferredImport : this.deferredImports) {
        this.group.process(deferredImport.getConfigurationClass().getMetadata(),
                                                                       deferredImport.getImportSelector());
    }
    return this.group.selectImports();
}

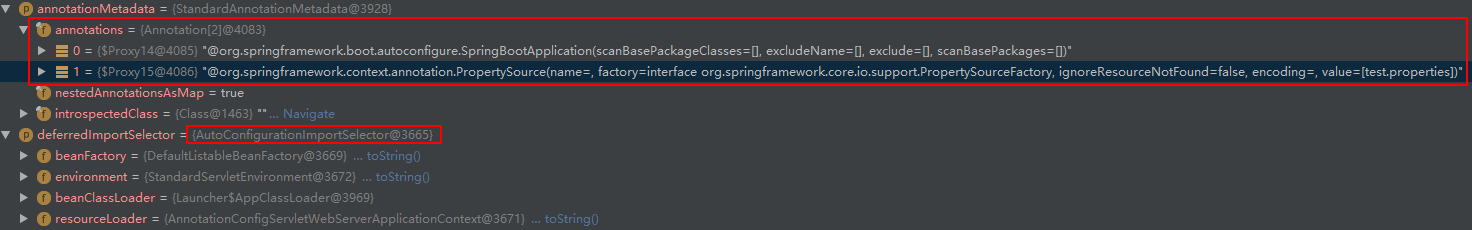

// 两个参数如下图所示,annotationMetadata是主配置类上面的注解
public void process(AnnotationMetadata annotationMetadata, DeferredImportSelector deferredImportSelector) {
     // 下面先分析下这个getAutoConfigurationEntry方法
     AutoConfigurationEntry autoConfigurationEntry = ((AutoConfigurationImportSelector) deferredImportSelector)
                     .getAutoConfigurationEntry(getAutoConfigurationMetadata(), annotationMetadata);
     // 加入到这个autoConfigurationEntries中
     this.autoConfigurationEntries.add(autoConfigurationEntry);
     for (String importClassName : autoConfigurationEntry.getConfigurations()) {
	 // 接着依次遍历放入到这个map中,Map<string, annotationmetadata> entries = new LinkedHashMap<>()
         this.entries.putIfAbsent(importClassName, annotationMetadata);
     }
}

// 这边就到了AutoConfigurationImportSelector类的方法中
protected AutoConfigurationEntry getAutoConfigurationEntry(AutoConfigurationMetadata autoConfigurationMetadata,
                                                           AnnotationMetadata annotationMetadata) {
    // 判断是否支持自动配置
    if (!isEnabled(annotationMetadata)) {
        return EMPTY_ENTRY;
    }

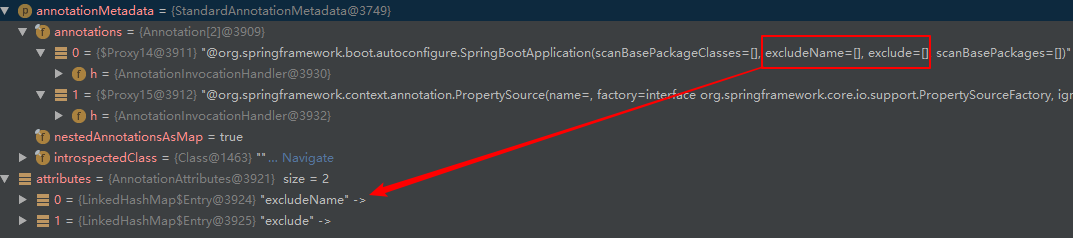

    // 这个attributes属性就是上图中显示的,用来过滤自动配置类的
    AnnotationAttributes attributes = getAttributes(annotationMetadata);
    // 下面分析这个方法,这个就是加载容器中的自动配置类
    List<string> configurations = getCandidateConfigurations(annotationMetadata, attributes);
    // 去除重复的,方法就是放入set再放入list中
    configurations = removeDuplicates(configurations);
    // 去除掉应该被排除的
    Set<string> exclusions = getExclusions(annotationMetadata, attributes);
    checkExcludedClasses(configurations, exclusions);
    configurations.removeAll(exclusions);

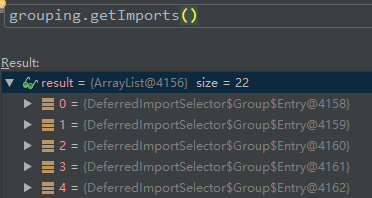

    // 通过filter过滤,下面分析,过滤完发现只有22个了
    configurations = filter(configurations, autoConfigurationMetadata);
    // 发布一个事件,好像没有做啥关键的
    fireAutoConfigurationImportEvents(configurations, exclusions);
    // 将configurations封装成AutoConfigurationEntry返回
    return new AutoConfigurationEntry(configurations, exclusions);
}

protected boolean isEnabled(AnnotationMetadata metadata) {
    if (getClass() == AutoConfigurationImportSelector.class) {
	// 判断有没有配置这个属性,没有的话默认为true,
	// String ENABLED_OVERRIDE_PROPERTY = "spring.boot.enableautoconfiguration";
        return getEnvironment().getProperty(EnableAutoConfiguration.ENABLED_OVERRIDE_PROPERTY, Boolean.class, true);
    }
    return true;
}

protected List<string> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
    // getSpringFactoriesLoaderFactoryClass()返回EnableAutoConfiguration.class,那么这边就是获取容器中所有的字段配置类

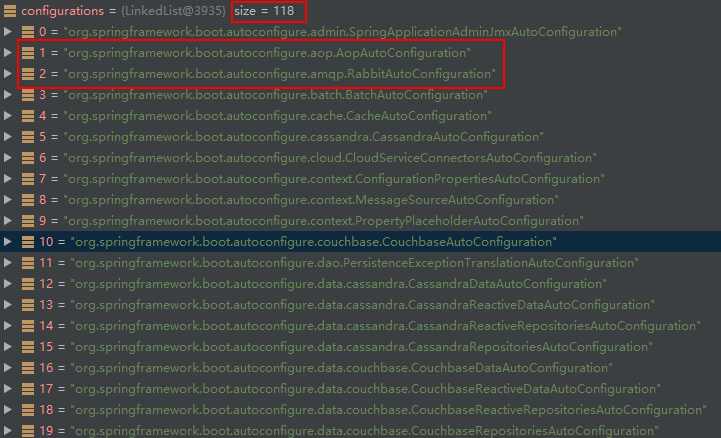

    // 见下图,默认总共有118个
    List<string> configurations = SpringFactoriesLoader.loadFactoryNames(getSpringFactoriesLoaderFactoryClass(),
                                                                                getBeanClassLoader());
    return configurations;
}

private List<string> filter(List<string> configurations, AutoConfigurationMetadata autoConfigurationMetadata) {
    long startTime = System.nanoTime();
    String[] candidates = StringUtils.toStringArray(configurations);
    boolean[] skip = new boolean[candidates.length];
    boolean skipped = false;
    for (AutoConfigurationImportFilter filter : getAutoConfigurationImportFilters()) {
        invokeAwareMethods(filter);
        boolean[] match = filter.match(candidates, autoConfigurationMetadata);
        for (int i = 0; i < match.length; i++) {
            if (!match[i]) {
               skip[i] = true;
               candidates[i] = null;
               skipped = true;
            }
       }
    }
    if (!skipped) {
        return configurations;
    }
    List<string> result = new ArrayList<>(candidates.length);
    for (int i = 0; i < candidates.length; i++) {
        if (!skip[i]) {
           result.add(candidates[i]);
        }
    }
    return new ArrayList<>(result);
}

protected List<autoconfigurationimportfilter> getAutoConfigurationImportFilters() {

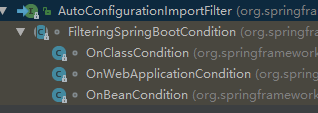

    // 看一下这个过滤的逻辑,看下图它的实现类大概就知道它是怎样过滤了
    return SpringFactoriesLoader.loadFactories(AutoConfigurationImportFilter.class, this.beanClassLoader);
}

// 下面解释下1.3节提出的问题,tomcatServletWebServerFactory,这个bean定义什么时候被加载到容器中
// filter之后的中有一个是org.springframework.boot.autoconfigure.web.servlet.ServletWebServerFactoryAutoConfiguration
@Configuration
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@ConditionalOnClass(ServletRequest.class)
@ConditionalOnWebApplication(type = Type.SERVLET)
@EnableConfigurationProperties(ServerProperties.class)
@Import({ ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
          // 会Import一个这个
          ServletWebServerFactoryConfiguration.EmbeddedTomcat.class,
          ServletWebServerFactoryConfiguration.EmbeddedJetty.class,
          ServletWebServerFactoryConfiguration.EmbeddedUndertow.class })
public class ServletWebServerFactoryAutoConfiguration {

@Configuration
class ServletWebServerFactoryConfiguration {

   @Configuration
   @ConditionalOnClass({ Servlet.class, Tomcat.class, UpgradeProtocol.class })
   @ConditionalOnMissingBean(value = ServletWebServerFactory.class, search = SearchStrategy.CURRENT)
   public static class EmbeddedTomcat {

      @Bean
      public TomcatServletWebServerFactory tomcatServletWebServerFactory() {
	  // 这边就会创建一个TomcatServletWebServerFactory
          return new TomcatServletWebServerFactory();
      }

  }}

// 到此为止grouping.getImports方法分析完了,它是返回之前加载的22个自动配置类
public void processGroupImports() {
    for (DeferredImportSelectorGrouping grouping : this.groupings.values()) {
	 // 下面先分析这个getImports方法
         grouping.getImports().forEach(entry -> {
	     // 这边这个configurationClass获取的还是主配置类SpringbootApplication
             ConfigurationClass configurationClass = this.configurationClasses.get(entry.getMetadata());
             try {
	         // 调用processImports方法处理,这个方法之前已经分析过了
                 processImports(configurationClass, asSourceClass(configurationClass),
                                                    asSourceClasses(entry.getImportClassName()), false);
             }
         });
    }
}

1.4、Web容器个性化配置解析

// 入口,onRefresh方法中会创建webServer,走到这里
protected ServletWebServerFactory getWebServerFactory() {
    // Use bean names so that we don''t consider the hierarchy
    // 默认返回只有一个,tomcatServletWebServerFactory,下面第三节会分析这个bean定义什么时候被加载到容器中
    String[] beanNames = getBeanFactory().getBeanNamesForType(ServletWebServerFactory.class);
    if (beanNames.length == 0) {
	// 抛异常
    }
    if (beanNames.length > 1) {
	// 抛异常
    }
    // 调用getBean创建工厂类实例,这边会调用getBean开始创建bean实例对象,这个步骤之前已经分析过了
    return getBeanFactory().getBean(beanNames[0], ServletWebServerFactory.class);
}

@Override
public Object applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName)
                                                                              throws BeansException {
    Object result = existingBean;
    for (BeanPostProcessor processor : getBeanPostProcessors()) {

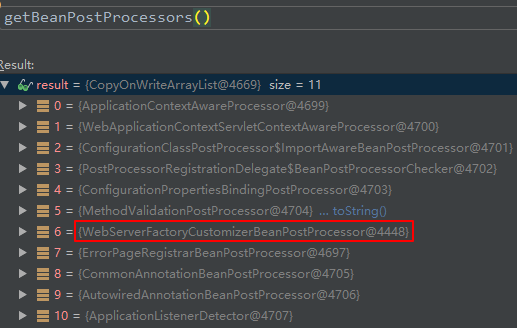

	// 当中有一个WebServerFactoryCustomizerBeanPostProcessor
        Object current = processor.postProcessBeforeInitialization(result, beanName);
        if (current == null) {
            return result;
        }
        result = current;
    }
    return result;
}

// 走到这里,WebServerFactoryCustomizerBeanPostProcessor
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
    if (bean instanceof WebServerFactory) {
       postProcessBeforeInitialization((WebServerFactory) bean);
    }
    return bean;
}

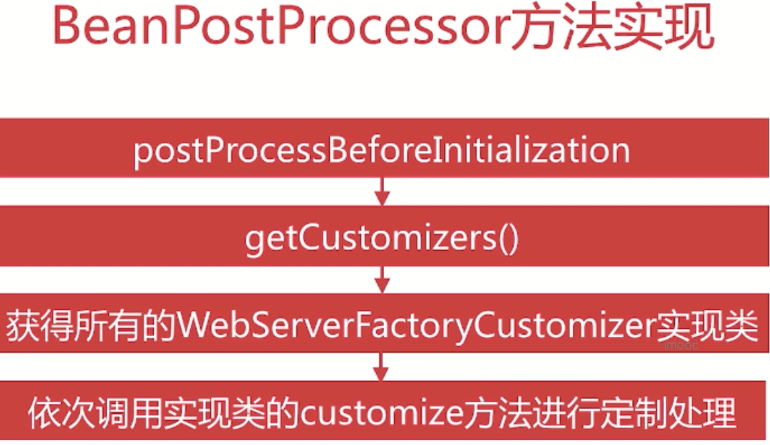

private void postProcessBeforeInitialization(WebServerFactory webServerFactory) {
    // 先看下getCustomizers方法
    // 这边lamda表达式的意思就是遍历getCustomizers方法,通过invoke调用每个customizer.cutomize方法定制修改web容器
    LambdaSafe.callbacks(WebServerFactoryCustomizer.class, getCustomizers(), webServerFactory)
             .withLogger(WebServerFactoryCustomizerBeanPostProcessor.class)
             .invoke((customizer) -> customizer.customize(webServerFactory));
}

private Collection<webserverfactorycustomizer<?>> getCustomizers() {
    if (this.customizers == null) {
       // Look up does not include the parent context

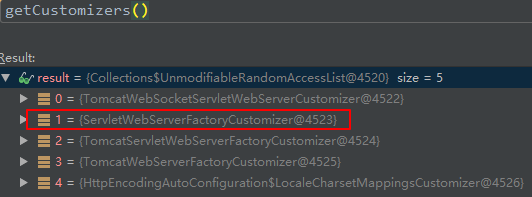

       // 获取容器中的所有WebServerFactoryCustomizer,待会我们分析下第二个Customizer
       this.customizers = new ArrayList&lt;&gt;(getWebServerFactoryCustomizerBeans());
       this.customizers.sort(AnnotationAwareOrderComparator.INSTANCE);
       this.customizers = Collections.unmodifiableList(this.customizers);
    }
    return this.customizers;
}

private Collection<webserverfactorycustomizer<?>> getWebServerFactoryCustomizerBeans() {
    return (Collection) this.beanFactory.getBeansOfType(WebServerFactoryCustomizer.class, false, false).values();
}

// 我们先来看下上图中第二个定制器,ServletWebServerFactoryCustomizer
@Configuration
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@ConditionalOnClass(ServletRequest.class)
@ConditionalOnWebApplication(type = Type.SERVLET)
@EnableConfigurationProperties(ServerProperties.class)
@Import({ ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
          ServletWebServerFactoryConfiguration.EmbeddedTomcat.class,
          ServletWebServerFactoryConfiguration.EmbeddedJetty.class,
          ServletWebServerFactoryConfiguration.EmbeddedUndertow.class })
public class ServletWebServerFactoryAutoConfiguration {

   // 它是怎么引入到容器中的呢?它是通过ServletWebServerFactoryAutoConfiguration的bean方法引入到的,
   // 并且赋值serverProperties
   @Bean
   public ServletWebServerFactoryCustomizer servletWebServerFactoryCustomizer(ServerProperties serverProperties) {
       return new ServletWebServerFactoryCustomizer(serverProperties);
   }
}

// 这就是我们在application.properties中修改port,会被赋值到这里,然后定制器就可以取到
@ConfigurationProperties(prefix = "server", ignoreUnknownFields = true)
public class ServerProperties {
    private Integer port;
    private InetAddress address;
    // 省略一些
}

// 然后我们再来看invoke((customizer) -> customizer.customize(webServerFactory))这个步骤,这会调用每个定制器的定制方法
// 具体我们看下ServletWebServerFactoryCustomizer的cutomize方法
public class ServletWebServerFactoryCustomizer
             implements WebServerFactoryCustomizer<configurableservletwebserverfactory>, Ordered {

   private final ServerProperties serverProperties;

   public ServletWebServerFactoryCustomizer(ServerProperties serverProperties) {
       this.serverProperties = serverProperties;
   }

   @Override
   public int getOrder() {
       return 0;
   }

   @Override

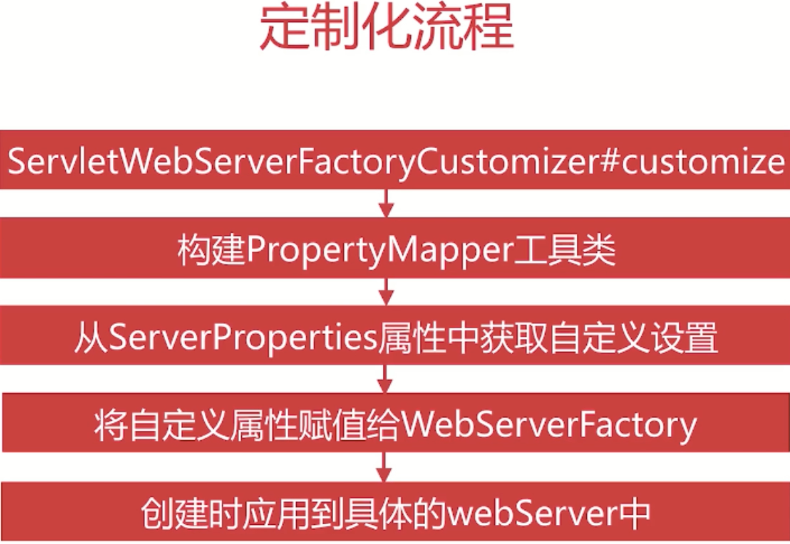

   public void customize(ConfigurableServletWebServerFactory factory) {
       PropertyMapper map = PropertyMapper.get().alwaysApplyingWhenNonNull();
	   // 这边是lamda表达式,调用factory.setPort进行赋值
       map.from(this.serverProperties::getPort).to(factory::setPort);
       map.from(this.serverProperties::getAddress).to(factory::setAddress);
       map.from(this.serverProperties.getServlet()::getContextPath).to(factory::setContextPath);
       map.from(this.serverProperties.getServlet()::getApplicationDisplayName).to(factory::setDisplayName);
       map.from(this.serverProperties.getServlet()::getSession).to(factory::setSession);
       map.from(this.serverProperties::getSsl).to(factory::setSsl);
       map.from(this.serverProperties.getServlet()::getJsp).to(factory::setJsp);
       map.from(this.serverProperties::getCompression).to(factory::setCompression);
       map.from(this.serverProperties::getHttp2).to(factory::setHttp2);
       map.from(this.serverProperties::getServerHeader).to(factory::setServerHeader);
       map.from(this.serverProperties.getServlet()::getContextParameters).to(factory::setInitParameters);
  }
}

cxf webservice部署servlet容器报错

关于了解servlet容器和servlet容器的概念和作用的问题我们已经讲解完毕，感谢您的阅读，如果还想了解更多关于18、配置嵌入式servlet容器(2)、19、配置嵌入式servlet容器(下)、8、Servlet容器启动解析、cxf webservice部署servlet容器报错等相关内容，可以在本站寻找。
