Spring Boot：无法启动嵌入式Tomcat Servlet容器（springboot启动不了tomcat）
我是Spring Boot的新手，运行应用程序时出错。我正在学习一个教程，我相信我对POM有正确的父母和依赖关系，请帮助我
主类：
package com.boot;import org.springframework.boot.SpringApplication;import org.springframework.boot.autoconfigure.EnableAutoConfiguration;import org.springframework.boot.autoconfigure.SpringBootApplication;import org.springframework.context.annotation.ComponentScan;import org.springframework.context.annotation.Configuration;/** * Hello world! * */@SpringBootApplicationpublic class App { public static void main( String[] args ) { SpringApplication.run(App.class, "hello"); }}错误是：
org.springframework.boot.context.embedded.EmbeddedServletContainerException: Unable to start embedded Tomcat servlet container at org.springframework.boot.context.embedded.tomcat.TomcatEmbeddedServletContainer.start(TomcatEmbeddedServletContainer.java:165) ~[spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] at org.springframework.boot.context.embedded.EmbeddedWebApplicationContext.startEmbeddedServletContainer(EmbeddedWebApplicationContext.java:293) ~[spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] at org.springframework.boot.context.embedded.EmbeddedWebApplicationContext.finishRefresh(EmbeddedWebApplicationContext.java:141) ~[spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:541) ~[spring-context-4.2.4.RELEASE.jar:4.2.4.RELEASE] at org.springframework.boot.context.embedded.EmbeddedWebApplicationContext.refresh(EmbeddedWebApplicationContext.java:118) ~[spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:764) [spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] at org.springframework.boot.SpringApplication.doRun(SpringApplication.java:357) [spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] at org.springframework.boot.SpringApplication.run(SpringApplication.java:305) [spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] at org.springframework.boot.SpringApplication.run(SpringApplication.java:1124) [spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] at org.springframework.boot.SpringApplication.run(SpringApplication.java:1113) [spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] at com.boot.App.main(App.java:18) [classes/:na]Caused by: java.lang.IllegalStateException: Tomcat connector in failed state at org.springframework.boot.context.embedded.tomcat.TomcatEmbeddedServletContainer.start(TomcatEmbeddedServletContainer.java:159) ~[spring-boot-1.3.1.RELEASE.jar:1.3.1.RELEASE] ... 10 common frames omitted聚甲醛
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.boot</groupId> <artifactId>das-boot</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>1.3.1.RELEASE</version> </parent> <name>das-boot</name> <url>http://maven.apache.org</url> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>3.8.1</version> <scope>test</scope> </dependency> </dependencies></project>答案1
小编典典尝试将application.yaml（或application.properties）中的端口号更改为其他名称。
17. Spring Boot 配置嵌入式Servlet容器
一、如何定制和修改Servlet容器的相关配置
1、配置文件（ServerProperties）；
优先级最高
server.port=8081
server.context‐path=/crud
server.tomcat.uri‐encoding=UTF‐8
//通用的Servlet容器设置
server.xxx
//Tomcat的设置
server.tomcat.xxx
2、java代码
2.1 Spring Boot 1.5.10 版本
@Bean //一定要将这个定制器加入到容器中 嵌入式的Servlet容器定制器
public EmbeddedServletContainerCustomizer embeddedServletContainerCustomizer(){
return new EmbeddedServletContainerCustomizer() {
//定制嵌入式的Servlet容器相关的规则
@Override
public void customize(ConfigurableEmbeddedServletContainer container) {
container.setPort(8083);
}
};
}
2.2 Spring Boot 2.1.0版本
2.2.1、 方式1 （优先级第二）
import org.springframework.boot.web.server.WebServerFactoryCustomizer;
import org.springframework.boot.web.servlet.server.ConfigurableServletWebServerFactory;
import org.springframework.stereotype.Component;
@Component
public class CustomizationBean implements WebServerFactoryCustomizer<ConfigurableServletWebServerFactory> {
@Override
public void customize(ConfigurableServletWebServerFactory server) {
server.setPort(9000);
}
}
2.2.2、方式2 （优先级最低）
@Bean
public ConfigurableServletWebServerFactory webServerFactory() {
TomcatServletWebServerFactory factory = new TomcatServletWebServerFactory();
factory.setPort(9000);
// factory.setSessionTimeout(10, TimeUnit.MINUTES); 此方法没找到
factory.addErrorPages(new ErrorPage(HttpStatus.NOT_FOUND, "/notfound.html"));
return factory;
}
二、自定义Servlet容器
1、Spring Boot 支持的 Servlet容器类型
2、切换Tomcat容器为jetty容器
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<exclusions><!-- 排除掉默认的Tomcat web容器-->
<exclusion>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-tomcat</artifactId>
</exclusion>
</exclusions>
</dependency>
<!-- 引入jetty容器。jetty 适合长连接的场景-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jetty</artifactId><!-- spring-boot-starter-undertow ，不支持JSP-->
</dependency>
undertow
包下：spring-boot-autoconfigure-2.1.0.RELEASE.jar

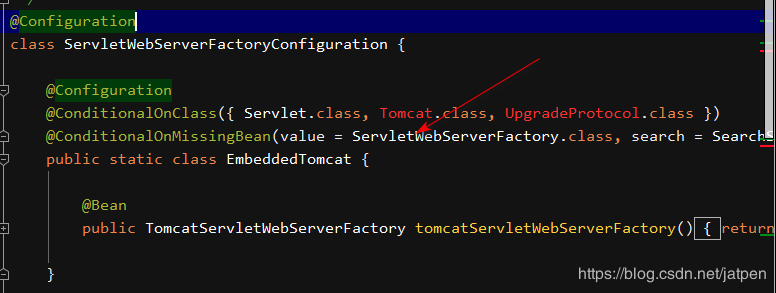

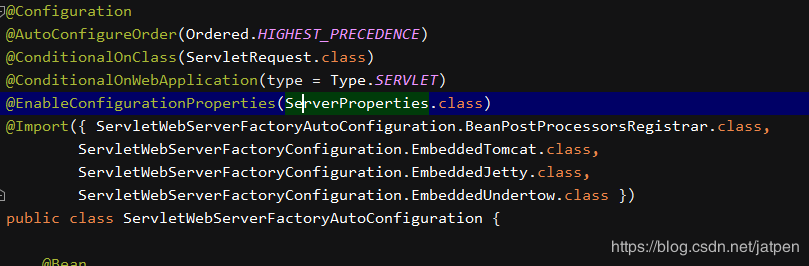

三、嵌入式Servlet容器自动配置原理Spring Boot 2.1.0版本示例： （注：1.5.10 和2.1.0版本有很大不同）
Servelt容器的自动配置类
@Configuration
@ConditionalOnWebApplication
@EnableConfigurationProperties(ServerProperties.class)
public class EmbeddedWebServerFactoryCustomizerAutoConfiguration {
/**
* Nested configuration if Tomcat is being used.
*/
@Configuration
@ConditionalOnClass({ Tomcat.class, UpgradeProtocol.class })
public static class TomcatWebServerFactoryCustomizerConfiguration {
@Bean
public TomcatWebServerFactoryCustomizer tomcatWebServerFactoryCustomizer(
Environment environment, ServerProperties serverProperties) {
return new TomcatWebServerFactoryCustomizer(environment, serverProperties);
}
}
/**
* Nested configuration if Jetty is being used.
*/
@Configuration
@ConditionalOnClass({ Server.class, Loader.class, WebAppContext.class })
public static class JettyWebServerFactoryCustomizerConfiguration {
@Bean
public JettyWebServerFactoryCustomizer jettyWebServerFactoryCustomizer(
Environment environment, ServerProperties serverProperties) {
return new JettyWebServerFactoryCustomizer(environment, serverProperties);
}
}
/**
* Nested configuration if Undertow is being used.
*/
@Configuration
@ConditionalOnClass({ Undertow.class, SslClientAuthMode.class })
public static class UndertowWebServerFactoryCustomizerConfiguration {
@Bean
public UndertowWebServerFactoryCustomizer undertowWebServerFactoryCustomizer(
Environment environment, ServerProperties serverProperties) {
return new UndertowWebServerFactoryCustomizer(environment, serverProperties);
}
}
/**
* Nested configuration if Netty is being used.
*/
@Configuration
@ConditionalOnClass(HttpServer.class)
public static class NettyWebServerFactoryCustomizerConfiguration {
@Bean
public NettyWebServerFactoryCustomizer nettyWebServerFactoryCustomizer(
Environment environment, ServerProperties serverProperties) {
return new NettyWebServerFactoryCustomizer(environment, serverProperties);
}
}
}
Tomcat 的Server的定制（Jetty、Netty、Undertow 类似）
public class TomcatWebServerFactoryCustomizer implements
WebServerFactoryCustomizer<ConfigurableTomcatWebServerFactory>, Ordered {
private final Environment environment;
private final ServerProperties serverProperties;
public TomcatWebServerFactoryCustomizer(Environment environment,
ServerProperties serverProperties) {
this.environment = environment;
this.serverProperties = serverProperties;
}
@Override
public int getOrder() {
return 0;
}
@Override
public void customize(ConfigurableTomcatWebServerFactory factory) {
ServerProperties properties = this.serverProperties;
ServerProperties.Tomcat tomcatProperties = properties.getTomcat();
PropertyMapper propertyMapper = PropertyMapper.get();
propertyMapper.from(tomcatProperties::getBasedir).whenNonNull()
.to(factory::setBaseDirectory);
propertyMapper.from(tomcatProperties::getBackgroundProcessorDelay).whenNonNull()
.as(Duration::getSeconds).as(Long::intValue)
.to(factory::setBackgroundProcessorDelay);
customizeRemoteIpValve(factory);
propertyMapper.from(tomcatProperties::getMaxThreads).when(this::isPositive)
.to((maxThreads) -> customizeMaxThreads(factory,
tomcatProperties.getMaxThreads()));
propertyMapper.from(tomcatProperties::getMinSpareThreads).when(this::isPositive)
.to((minSpareThreads) -> customizeMinThreads(factory, minSpareThreads));
propertyMapper.from(this::determineMaxHttpHeaderSize).whenNonNull()
.asInt(DataSize::toBytes).when(this::isPositive)
.to((maxHttpHeaderSize) -> customizeMaxHttpHeaderSize(factory,
maxHttpHeaderSize));
propertyMapper.from(tomcatProperties::getMaxSwallowSize).whenNonNull()
.asInt(DataSize::toBytes)
.to((maxSwallowSize) -> customizeMaxSwallowSize(factory, maxSwallowSize));
propertyMapper.from(tomcatProperties::getMaxHttpPostSize).asInt(DataSize::toBytes)
.when((maxHttpPostSize) -> maxHttpPostSize != 0)
.to((maxHttpPostSize) -> customizeMaxHttpPostSize(factory,
maxHttpPostSize));
propertyMapper.from(tomcatProperties::getAccesslog)
.when(ServerProperties.Tomcat.Accesslog::isEnabled)
.to((enabled) -> customizeAccessLog(factory));
propertyMapper.from(tomcatProperties::getUriEncoding).whenNonNull()
.to(factory::setUriEncoding);
propertyMapper.from(properties::getConnectionTimeout).whenNonNull()
.to((connectionTimeout) -> customizeConnectionTimeout(factory,
connectionTimeout));
propertyMapper.from(tomcatProperties::getMaxConnections).when(this::isPositive)
.to((maxConnections) -> customizeMaxConnections(factory, maxConnections));
propertyMapper.from(tomcatProperties::getAcceptCount).when(this::isPositive)
.to((acceptCount) -> customizeAcceptCount(factory, acceptCount));
customizeStaticResources(factory);
customizeErrorReportValve(properties.getError(), factory);
}
。。。。。。
}
Spring Boot 2.1.0 版本的web容器启动流程 （Spring boot 1.5.10版本类似但不同）
1.Spring boot启动器
@SpringBootApplication
public class SpringBootDemo01Application {
public static void main(String[] args) {
SpringApplication.run(SpringBootDemo01Application.class, args);
}
}
2.run方法启动过程源码分析
public class SpringApplication {
//在createApplicationContext（）中根据类型classforName()加载 不同类型的
public static final String DEFAULT_CONTEXT_CLASS = "org.springframework.context."
+ "annotation.AnnotationConfigApplicationContext";
public static final String DEFAULT_SERVLET_WEB_CONTEXT_CLASS = "org.springframework.boot."
+ "web.servlet.context.AnnotationConfigServletWebServerApplicationContext";
public static final String DEFAULT_REACTIVE_WEB_CONTEXT_CLASS = "org.springframework."
+ "boot.web.reactive.context.AnnotationConfigReactiveWebServerApplicationContext";
//run1调用run2
public static ConfigurableApplicationContext run(Class<?> primarySource,String... args) {
return run(new Class<?>[] { primarySource }, args);
}
//run2调用run3
public static ConfigurableApplicationContext run(Class<?>[] primarySources,String[] args) {
return new SpringApplication(primarySources).run(args);
}
//run3启动Web服务器
public ConfigurableApplicationContext run(String... args) {
StopWatch stopWatch = new StopWatch();
stopWatch.start();
ConfigurableApplicationContext context = null;
Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
configureHeadlessProperty();
SpringApplicationRunListeners listeners = getRunListeners(args);
listeners.starting();
try {
ApplicationArguments applicationArguments = new DefaultApplicationArguments(
args);
ConfigurableEnvironment environment = prepareEnvironment(listeners,
applicationArguments);
configureIgnoreBeanInfo(environment);
Banner printedBanner = printBanner(environment);
context = createApplicationContext();
exceptionReporters = getSpringFactoriesInstances(
SpringBootExceptionReporter.class,
new Class[] { ConfigurableApplicationContext.class }, context);
prepareContext(context, environment, listeners, applicationArguments,
printedBanner);
refreshContext(context);
afterRefresh(context, applicationArguments);
stopWatch.stop();
if (this.logStartupInfo) {
new StartupInfoLogger(this.mainApplicationClass)
.logStarted(getApplicationLog(), stopWatch);
}
listeners.started(context);
callRunners(context, applicationArguments);
}
catch (Throwable ex) {
handleRunFailure(context, ex, exceptionReporters, listeners);
throw new IllegalStateException(ex);
}
try {
listeners.running(context);
}
catch (Throwable ex) {
handleRunFailure(context, ex, exceptionReporters, null);
throw new IllegalStateException(ex);
}
return context;
}
protected ConfigurableApplicationContext createApplicationContext() {
Class<?> contextClass = this.applicationContextClass;
if (contextClass == null) {
try {
switch (this.webApplicationType) {
case SERVLET:
contextClass = Class.forName(DEFAULT_SERVLET_WEB_CONTEXT_CLASS);
break;
case REACTIVE:
contextClass = Class.forName(DEFAULT_REACTIVE_WEB_CONTEXT_CLASS);
break;
default:
contextClass = Class.forName(DEFAULT_CONTEXT_CLASS);
}
}
catch (ClassNotFoundException ex) {
throw new IllegalStateException(
"Unable create a default ApplicationContext, "
+ "please specify an ApplicationContextClass",
ex);
}
}
return (ConfigurableApplicationContext) BeanUtils.instantiateClass(contextClass);
}
private void refreshContext(ConfigurableApplicationContext context) {
refresh(context);
if (this.registerShutdownHook) {
try {
context.registerShutdownHook();
}
catch (AccessControlException ex) {
// Not allowed in some environments.
}
}
}
protected void refresh(ApplicationContext applicationContext) {
Assert.isInstanceOf(AbstractApplicationContext.class, applicationContext);
((AbstractApplicationContext) applicationContext).refresh();
}
}
public abstract class AbstractApplicationContext extends DefaultResourceLoader
implements ConfigurableApplicationContext {
@Override
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
// Prepare this context for refreshing.
prepareRefresh();
// Tell the subclass to refresh the internal bean factory.
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Prepare the bean factory for use in this context.
prepareBeanFactory(beanFactory);
try {
// Allows post-processing of the bean factory in context subclasses.
postProcessBeanFactory(beanFactory);
// Invoke factory processors registered as beans in the context.
invokeBeanFactoryPostProcessors(beanFactory);
// Register bean processors that intercept bean creation.
registerBeanPostProcessors(beanFactory);
// Initialize message source for this context.
initMessageSource();
// Initialize event multicaster for this context.
initApplicationEventMulticaster();
// Initialize other special beans in specific context subclasses.
onRefresh();
// Check for listener beans and register them.
registerListeners();
// Instantiate all remaining (non-lazy-init) singletons.
finishBeanFactoryInitialization(beanFactory);
// Last step: publish corresponding event.
finishRefresh();
}
catch (BeansException ex) {
if (logger.isWarnEnabled()) {
logger.warn("Exception encountered during context initialization - " +
"cancelling refresh attempt: " + ex);
}
// Destroy already created singletons to avoid dangling resources.
destroyBeans();
// Reset ''active'' flag.
cancelRefresh(ex);
// Propagate exception to caller.
throw ex;
}
finally {
// Reset common introspection caches in Spring''s core, since we
// might not ever need metadata for singleton beans anymore...
resetCommonCaches();
}
}
}
protected void onRefresh() throws BeansException {
// For subclasses: do nothing by default.
}
}
public class ServletWebServerApplicationContext extends GenericWebApplicationContext
implements ConfigurableWebServerApplicationContext {
@Override
protected void onRefresh() {
super.onRefresh();
try {
createWebServer();
}
catch (Throwable ex) {
throw new ApplicationContextException("Unable to start web server", ex);
}
}
private void createWebServer() {
WebServer webServer = this.webServer;
ServletContext servletContext = getServletContext();
if (webServer == null && servletContext == null) {
ServletWebServerFactory factory = getWebServerFactory();
this.webServer = factory.getWebServer(getSelfInitializer());
}
else if (servletContext != null) {
try {
getSelfInitializer().onStartup(servletContext);
}
catch (ServletException ex) {
throw new ApplicationContextException("Cannot initialize servlet context",
ex);
}
}
initPropertySources();
}
}
spring-boot-2.1.0.RELEASE.jar
4_7.springboot2.x嵌入式servlet容器自动配置原理
概述
Spring Boot对所支持的Servlet Web服务器实现做了建模抽象:
| Servlet容器类型 | WebServer模型接口 | WebServer工厂实现类 |
| Tomcat | TomcatWebServer | TomcatServletWebServerFactory |
| Jetty | JettyWebServer | JettyServletWebServerFactory |
| Undertow | UndertowWebServer | UndertowServletWebServerFactory |
基于此模型概念,在一个Servlet Web应用中，Spring Boot会使用上表中所说的WebServer工厂组件生成相应的WebServer实例。而这里的WebServer工厂组件又是从哪里来的呢 ？ 这就是自动配置类ServletWebServerFactoryAutoConfiguration的任务了。
自动配置类ServletWebServerFactoryAutoConfiguration首先通过注解声明自己的生效条件:类 ServletRequest 存在于 classpath 上时才生效,也就是要求javax.servlet-api包必须被引用;当前应用必须是Spring MVC应用才生效；在以上条件被满足时，ServletWebServerFactoryAutoConfiguration引入了如下三个配置类 :
EmbeddedTomcat
EmbeddedJetty
EmbeddedUndertow
这三个配置类是ServletWebServerFactoryConfiguration的嵌套配置类，它们会分别检测classpath上存在的类，从而判断当前应用使用的是Tomcat/Jetty/Undertow中的哪一个Servlet Web服务器,从而决定定义相应的工厂组件bean : TomcatServletWebServerFactory/JettyServletWebServerFactory/UndertowServletWebServerFactory。
详解：
ServletWebServerFactoryAutoConfiguration
/**
* EnableAutoConfiguration Auto-configuration for servlet web servers.
*
*/
@Configuration
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
// 仅在类 ServletRequest 存在于 classpath 上时才生效
@ConditionalOnClass(ServletRequest.class)
// 仅在当前应用是 Servlet Web 应用时才生效
@ConditionalOnWebApplication(type = Type.SERVLET)
// 确保前缀为 server 的配置参数加载到 bean ServerProperties
@EnableConfigurationProperties(ServerProperties.class)
// 1. 导入 ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar 以注册
// BeanPostProcessor : WebServerFactoryCustomizerBeanPostProcessor 和
// ErrorPageRegistrarBeanPostProcessor
// 2. 导入 EmbeddedTomcat/EmbeddedJetty/EmbeddedUndertow 这三个属于
// ServletWebServerFactoryConfiguration 的嵌套配置类，这三个配置类会分别检测
// classpath上存在的类，从而判断当前应用使用的是 Tomcat/Jetty/Undertow,
// 从而决定定义哪一个 Servlet Web服务器的工厂 bean :
// TomcatServletWebServerFactory/JettyServletWebServerFactory/UndertowServletWebServerFactory
@Import({ ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
ServletWebServerFactoryConfiguration.EmbeddedTomcat.class,
ServletWebServerFactoryConfiguration.EmbeddedJetty.class,
ServletWebServerFactoryConfiguration.EmbeddedUndertow.class })
public class ServletWebServerFactoryAutoConfiguration {
// 定义 bean ServletWebServerFactoryCustomizer，这里与properties中serverProperties配置联系，解释了为什么配置文件也可修改servlet容器配置
@Bean
public ServletWebServerFactoryCustomizer servletWebServerFactoryCustomizer(
ServerProperties serverProperties) {
return new ServletWebServerFactoryCustomizer(serverProperties);
}
// 针对当前Servlet容器是Tomcat时定义该 bean，用于定制化 TomcatServletWebServerFactory
@Bean
// 仅在类 org.apache.catalina.startup.Tomcat 存在于 classpath 上时才生效
@ConditionalOnClass(name = "org.apache.catalina.startup.Tomcat")
public TomcatServletWebServerFactoryCustomizer tomcatServletWebServerFactoryCustomizer(
ServerProperties serverProperties) {
return new TomcatServletWebServerFactoryCustomizer(serverProperties);
}
/**
* Registers a WebServerFactoryCustomizerBeanPostProcessor. Registered via
* ImportBeanDefinitionRegistrar for early registration.
* 这是一个 ImportBeanDefinitionRegistrar， 它会向容器注入两个 BeanPostProcessor :
* 1. WebServerFactoryCustomizerBeanPostProcessor
* 该 BeanPostProcessor 会搜集容器中所有的 WebServerFactoryCustomizer，对当前应用所采用的
* WebServerFactory 被初始化前进行定制
* 2. ErrorPageRegistrarBeanPostProcessor
* 该 BeanPostProcessor 会搜集容器中所有的 ErrorPageRegistrar，添加到当前应用所采用的
* ErrorPageRegistry 中,实际上，这里的 ErrorPageRegistry 会是 ConfigurableWebServerFactory,
* 具体实现上来讲，是一个 ConfigurableTomcatWebServerFactory,ConfigurableJettyWebServerFactory
* 或者 ConfigurableUndertowWebServerFactory,分别对应 Tomcat, Jetty, Undertow 这三种
* Servlet Web 容器的工厂类
*/
public static class BeanPostProcessorsRegistrar
implements ImportBeanDefinitionRegistrar, BeanFactoryAware {
private ConfigurableListableBeanFactory beanFactory;
@Override
public void setBeanFactory(BeanFactory beanFactory) throws BeansException {
if (beanFactory instanceof ConfigurableListableBeanFactory) {
this.beanFactory = (ConfigurableListableBeanFactory) beanFactory;
}
}
@Override
public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata,
BeanDefinitionRegistry registry) {
if (this.beanFactory == null) {
return;
}
registerSyntheticBeanIfMissing(registry,
"webServerFactoryCustomizerBeanPostProcessor",
WebServerFactoryCustomizerBeanPostProcessor.class);
registerSyntheticBeanIfMissing(registry,
"errorPageRegistrarBeanPostProcessor",
ErrorPageRegistrarBeanPostProcessor.class);
}
private void registerSyntheticBeanIfMissing(BeanDefinitionRegistry registry,
String name, Class<?> beanClass) {
if (ObjectUtils.isEmpty(
this.beanFactory.getBeanNamesForType(beanClass, true, false))) {
RootBeanDefinition beanDefinition = new RootBeanDefinition(beanClass);
beanDefinition.setSynthetic(true);
registry.registerBeanDefinition(name, beanDefinition);
}
}
}ServletWebServerFactoryConfiguration
ServletWebServerFactoryConfiguration是一个针对ServletWebServerFactory进行配置的配置类。它通过检测应用classpath存在的类，从而判断当前应用要使用哪个Servlet容器:Tomcat,Jetty还是Undertow。检测出来之后，定义相应的Servlet Web服务器工厂组件bean
| Servlet容器类型 | WebServerFactory实现类 |
| Tomcat | TomcatServletWebServerFactory |
| Jetty | JettyServletWebServerFactory |
| Undertow | UndertowServletWebServerFactory |
注意，以上三个实现类都继承自抽象基类AbstractServletWebServerFactory,实现了接口WebServerFactory,ErrorPageRegistry。该特征会被WebServerFactoryCustomizerBeanPostProcessor和ErrorPageRegistrarBeanPostProcessor使用，用于对WebServerFactory进行定制化，以及设置相应的错误页面。
@Configuration
class ServletWebServerFactoryConfiguration {
@Configuration
@ConditionalOnClass({ Servlet.class, Tomcat.class, UpgradeProtocol.class })
@ConditionalOnMissingBean(value = ServletWebServerFactory.class, search = SearchStrategy.CURRENT)
public static class EmbeddedTomcat {
@Bean
public TomcatServletWebServerFactory tomcatServletWebServerFactory() {
return new TomcatServletWebServerFactory();
}
}
/**
* Nested configuration if Jetty is being used.
*/
@Configuration
@ConditionalOnClass({ Servlet.class, Server.class, Loader.class, WebAppContext.class })
@ConditionalOnMissingBean(value = ServletWebServerFactory.class, search = SearchStrategy.CURRENT)
public static class EmbeddedJetty {
@Bean
public JettyServletWebServerFactory JettyServletWebServerFactory() {
return new JettyServletWebServerFactory();
}
}
/**
* Nested configuration if Undertow is being used.
*/
@Configuration
@ConditionalOnClass({ Servlet.class, Undertow.class, SslClientAuthMode.class })
@ConditionalOnMissingBean(value = ServletWebServerFactory.class, search = SearchStrategy.CURRENT)
public static class EmbeddedUndertow {
@Bean
public UndertowServletWebServerFactory undertowServletWebServerFactory() {
return new UndertowServletWebServerFactory();
}
}
}查看代码：
这里以TomcatServletWebServerFactory:
注意这里此方法返回值：getTomcatWebServer(tomcat);查看此方法：传入两个参数，只要得到端口号大于0就默认启动
同时查看：其中TomcatWebServer类构造方法：
这时候tomcat启动开始。查看initialize();方法
private void initialize() throws WebServerException {
logger.info("Tomcat initialized with port(s): " + getPortsDescription(false));
synchronized (this.monitor) {
try {
addInstanceIdToEngineName();
Context context = findContext();
context.addLifecycleListener((event) -> {
if (context.equals(event.getSource()) && Lifecycle.START_EVENT.equals(event.getType())) {
// Remove service connectors so that protocol binding doesn''t
// happen when the service is started.
removeServiceConnectors();
}
});
// Start the server to trigger initialization listeners
this.tomcat.start();
// We can re-throw failure exception directly in the main thread
rethrowDeferredStartupExceptions();
try {
ContextBindings.bindClassLoader(context, context.getNamingToken(), getClass().getClassLoader());
}
catch (NamingException ex) {
// Naming is not enabled. Continue
}
// Unlike Jetty, all Tomcat threads are daemon threads. We create a
// blocking non-daemon to stop immediate shutdown
startDaemonAwaitThread();
}
catch (Exception ex) {
stopSilently();
destroySilently();
throw new WebServerException("Unable to start embedded Tomcat", ex);
}
}
}可以看到有启动： this.tomcat.start();启动！
思考
如何对嵌入式容器的配置修改是怎么生效的
两种方法:1、修改properties
2、配置servlet容器定制器
@Bean
public WebServerFactoryCustomizer<TomcatServletWebServerFactory> myWebServerFactoryCustomizer() {
return new WebServerFactoryCustomizer<TomcatServletWebServerFactory>() {
public void customize(TomcatServletWebServerFactory factory) {
//设置相关配置
factory.setPort(8080);
}
};
}思考：怎么修改的原理？
springboot版本对照：
1.5.x:-->
//导入后置处理器的注册器，作用给容器导入组件
@Import(BeanPostProcessorsRegistrar.class
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@Configuration
@ConditionalOnWebApplication
//导入后置处理器的注册器
@Import(BeanPostProcessorsRegistrar.class)
public class EmbeddedServletContainerAutoConfiguration {.....}2.x:将其作为内部类导入组件
@Configuration
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@ConditionalOnClass(ServletRequest.class)
@ConditionalOnWebApplication(type = Type.SERVLET)
@EnableConfigurationProperties(ServerProperties.class)
@Import({ ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
ServletWebServerFactoryConfiguration.EmbeddedTomcat.class,
ServletWebServerFactoryConfiguration.EmbeddedJetty.class,
ServletWebServerFactoryConfiguration.EmbeddedUndertow.class })
public class ServletWebServerFactoryAutoConfiguration {
.....
public static class BeanPostProcessorsRegistrar implements ImportBeanDefinitionRegistrar, BeanFactoryAware {
...
@Override
public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata,BeanDefinitionRegistry registry) {
if (this.beanFactory == null) {
return;
}
//导入servlet定制器的后置处理器
registerSyntheticBeanIfMissing(registry, "webServerFactoryCustomizerBeanPostProcessor",
WebServerFactoryCustomizerBeanPostProcessor.class);
registerSyntheticBeanIfMissing(registry, "errorPageRegistrarBeanPostProcessor",
ErrorPageRegistrarBeanPostProcessor.class);
}
}
}观察方法：BeanPostProcessorsRegistrar，导入servlet定制器的后置处理器
作用：后置处理器：bean初始化前后（创建完对象，还没赋值赋值）执行初始化工作
WebServerFactoryCustomizerBeanPostProcessor
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
if (bean instanceof WebServerFactory) {
postProcessBeforeInitialization((WebServerFactory) bean);
}
return bean;
}初始化之前：判断如果当前初始化组件是WebServerFactory 的一个组件，就调用postProcessBeforeInitialization此方法，
private void postProcessBeforeInitialization(WebServerFactory webServerFactory) {
LambdaSafe.callbacks(WebServerFactoryCustomizer.class, getCustomizers(), webServerFactory)
.withLogger(WebServerFactoryCustomizerBeanPostProcessor.class)
.invoke((customizer) -> customizer.customize(webServerFactory));
}此方法：获取所有的定制器，调用每一个定制器的customize方法，来给servlet容器进行属性赋值
getCustomizers()方法以上调用：
private Collection<WebServerFactoryCustomizer<?>> getCustomizers() {
if (this.customizers == null) {
// Look up does not include the parent context
this.customizers = new ArrayList<>(getWebServerFactoryCustomizerBeans());
this.customizers.sort(AnnotationAwareOrderComparator.INSTANCE);
this.customizers = Collections.unmodifiableList(this.customizers);
}
return this.customizers;
}
this.customizers = new ArrayList<>(getWebServerFactoryCustomizerBeans());此方法点进去：
@SuppressWarnings({ "unchecked", "rawtypes" })
private Collection<WebServerFactoryCustomizer<?>> getWebServerFactoryCustomizerBeans() {
return (Collection) this.beanFactory.getBeansOfType(WebServerFactoryCustomizer.class, false, false).values();
}作用：从容器中获取所有该类型的组件：WebServerFactoryCustomizer这里该组件我们可以定制。
思考2？在properties中是怎样定制servlet容器的？？
@Configuration
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@ConditionalOnClass(ServletRequest.class)
@ConditionalOnWebApplication(type = Type.SERVLET)
@EnableConfigurationProperties(ServerProperties.class)
@Import({ ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
ServletWebServerFactoryConfiguration.EmbeddedTomcat.class,
ServletWebServerFactoryConfiguration.EmbeddedJetty.class,
ServletWebServerFactoryConfiguration.EmbeddedUndertow.class })
public class ServletWebServerFactoryAutoConfiguration {......}2.x:中直接在servelt容器工厂的自动配置类：@EnableConfigurationProperties(ServerProperties.class)注解，向容器中添加ServerProperties组件，在SpringBoot中xxxProperties类都是和配置文件映射的类，用户可以通过配置文件配置类中属性。例如：用户可以通过server.port配置容器端口号。
1.5.x:serverProperties中实现方法。
嵌入式servlet容器自动配置原理的步骤
1）、SpringBoot根据导入的依赖情况，容器中导入的ServletWebServerFactoryConfiguration配置类，给容器添加相应的TomcatServletWebServerFactory，通过TomcatServletWebServerFactory的getWebServer（）启动servelt容器
2）、容器中某个组件要创建对象就会惊动后置处理器；@Import({ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
只要是嵌入式的Servlet容器工厂，后置处理器就工作，用与定制嵌入式容器的配置修改，
3）、后置处理器，执行postProcessBeforeInitialization（）方法，调用定制器的定制方法；
4、SpringBoot嵌入式Servlet容器
1、切换嵌入式Servlet容器
- 默认支持的web服务器webServer：
Tomcat, Jetty, Undertow
ServletWebServerApplicationContext 容器启动寻找ServletWebServerFactory 并引导创建服务器
切换服务器（可以切换四种）
切换的方式： <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> <exclusions> <exclusion> 排除 <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-tomcat</artifactId> </exclusion> </exclusions> </dependency> <dependency> 导入 <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-undertow</artifactId> </dependency> 2022-07-17 19:34:02.650 INFO 6808 --- [ restartedMain] o.s.b.w.e.undertow.UndertowWebServer : Undertow started on port(s) 8080 (http)
原理
- SpringBoot应用启动发现当前是Web应用。因为导了web场景包，它里面也导入tomcat
- web应用会创建一个web版的ioc容器，名字叫
ServletWebServerApplicationContext ServletWebServerApplicationContext它在项目一启动的时候寻找ServletWebServerFactory（Servlet 的web服务器工厂---> 这个工厂生产 Servlet 的web服务器）- SpringBoot底层默认有很多的WebServer工厂：
TomcatServletWebServerFactory,JettyServletWebServerFactory,UndertowServletWebServerFactory - 这些web服务器工厂不需要我们配，底层直接会有一个自动配置类
ServletWebServerFactoryAutoConfiguration ServletWebServerFactoryAutoConfiguration导入了ServletWebServerFactoryConfiguration（配置类）ServletWebServerFactoryConfiguration配置类 根据动态判断系统中到底导入了哪个Web服务器的包。（默认是web-starter导入tomcat包），容器中就有TomcatServletWebServerFactoryTomcatServletWebServerFactory创建出Tomcat服务器TomcatWebServer并启动；TomcatWebServer 的构造器拥有初始化方法initialize，这个初始化方法把所有东西准备好，把tomcat调用start方法this.tomcat.start();启动tomcat- 其实内嵌服务器，就是手动把启动服务器的代码调用（前提是tomcat核心jar包存在，才能启动tomcat）
2、定制Servlet容器
- 实现 WebServerFactoryCustomizer<ConfigurableServletWebServerFactory>
○ 把配置文件的值和ServletWebServerFactory 进行绑定 - 修改配置文件 server.xxx
- 直接自定义 ConfigurableServletWebServerFactory
xxxxxCustomizer：定制化器，可以改变xxxx的默认规则
import org.springframework.boot.web.server.WebServerFactoryCustomizer;
import org.springframework.boot.web.servlet.server.ConfigurableServletWebServerFactory;
import org.springframework.stereotype.Component;
@Component
public class CustomizationBean implements WebServerFactoryCustomizer<ConfigurableServletWebServerFactory> {
@Override
public void customize(ConfigurableServletWebServerFactory server) {
server.setPort(9000);
}
}
Spring Boot 2.x 嵌入式 Servlet 容器
一、修改Spring Boot 中内嵌Servlet容器的默认配置
Spring Boot提供了默认提供了内嵌的Tomcat，可以通过命令行运行jar包的方式运行Spring Boot应用，spring-boot-start-web依赖中包含了Tomcat依赖，最新版本为9.0.62。
以往通过Tomcat容器运行Spring应用时，可以通过修改Tomcat的一些配置文件来修改Tomcat的运行状态，比如说端口号等，那么Spring Boot内嵌的Tomcat要如何修改？
有两种方式修改内置Tomcat的配置，第一种是在application.properties中添加tomcat配置和server配置
第二种方式是编写一个WebServerFactoryCustomizer来进行tomcat的配置，在SpringBoot1.x的时候使用的是EmbeddedServletContainerCustomizer到SpringBoot2.x后WebServerFactoryCustomizer替代了EmbeddedServletContainerCustomizer。
java 代码解读复制代码@Configuration
public class LilithMvcConfig implements WebMvcConfigurer {
@Bean
public WebServerFactoryCustomizer<ConfigurableWebServerFactory> customizer(){
return factory -> {
factory.setPort(8083);
};
}}
注释application.properties中的配置，重新启动该应用
配置生效，tomcat在8083端口启动
这两种配置的优先级是怎样的？
在application.properties中配置
properties 代码解读复制代码server.port=8081
server.servlet.context-path=/servlet
保持WebServerFactoryCustomizer中配置的端口不变，重启应用
控制台输出端口号为8083，路径为/servlet，可以确定重写WebServerFactoryCustomizer配置Tomcat的优先级更高，并且和application.properties是互补的。
二、Spring Boot中注册Servlet、Filter、Listener
在Java Web项目中，我们书写的Servlet、Filter、Listener组件都可以通过web.xml将这些组件配置到Tomcat容器中，那么在Spring Boot项目中使用内置Tomcat并且没有web.xml的情况如何注册这些组件？
Spring Boot为Java Web三大组件提供了通过XxxRegistrationBean的方式进行注册
ServletRegistrationBean注册Servlet
创建一个HalloServelet类继承HttpServlet类，并重写doGet()和doPost()方法
java 代码解读复制代码public class HalloServlet extends HttpServlet {
// 处理get请求
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
doPost(req,resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
resp.getWriter().write("Hallo Servlet");
}}
使用ServletRegisterBean，代替在web.xml中注册Servlet，在LilithMvcConfig中增加代码
java 代码解读复制代码// 注册Servlet
@Bean
public ServletRegistrationBean<HalloServlet> halloServletServletRegistrationBean(){
ServletRegistrationBean registrationBean = new ServletRegistrationBean();
registrationBean.setServlet(new HalloServlet());
registrationBean.setUrlMappings(Collections.singleton("/hallo"));
return registrationBean;}
重启应用，在浏览器访问/hallo
浏览器能够正常显示内容，自定义的Servlet成功注册。
FilterRegistrationBean注册Filter
首先自定义一个LilithFilter类实现Filter接口，在打印日志后放行请求
java 代码解读复制代码public class LilithFilter implements Filter {
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
System.out.println("LilithFilter running");
chain.doFilter(request,response);
}}
在LilithMvcConfig配置类中通过FilterRegistrationBean注册自定义的LilithFilter，并在其中设置过滤器要拦截的请求路径
java 代码解读复制代码// 注册Filter
@Bean
public FilterRegistrationBean<LilithFilter> lilithFilterFilterRegistrationBean(){
FilterRegistrationBean<LilithFilter> filterFilterRegistrationBean = new FilterRegistrationBean<>();
filterFilterRegistrationBean.setFilter(new LilithFilter());
// 设置拦截的请求路径
filterFilterRegistrationBean.setUrlPatterns(Arrays.asList("/hallo"));
return filterFilterRegistrationBean;}
重启应用，在浏览器输入 /hallo
控制台输出自定义的LilithFilter类中的日志信息，自定义的LilithFilter注册成功并生效
在controller包中新增一个HiController，增加一个hi()方法，请求映射路径为/hi
java 代码解读复制代码@Controller
public class HiController {
@RequestMapping("/hi")
@ResponseBody
public String hi(){
return "Hi Lilith!";
}}
重启应用，浏览器访问/hi，看是否会拦截
控制台没有输出LilithFilter中设置的日志信息，说明没有被拦截，因为LilithFilter过滤器中没有设置拦截该请求，需要注意的是如果LilithFilter中没有设置拦截任何请求，默认拦截所有请求包括静态资源，但是不会jsp请求； /* 会拦截jsp请求。
ServletListenerRegistrationBean注册Listener
增加一个LilithListener类实现Listener接口，实现contextInitialized()方法和contextDestroyed()方法，并打印日志信
java 代码解读复制代码public class LilithListener implements ServletContextListener {
@Override
public void contextInitialized(ServletContextEvent sce) {
System.out.println("Web 应用启动了.......");
}
@Override
public void contextDestroyed(ServletContextEvent sce) {
System.out.println("Web 应用销毁了.......");
}}
在LilithMvcConfig配置类中通过ServletListenerRegistrationBean注册自定义的监听器LilithListener
java 代码解读复制代码@Bean
public ServletListenerRegistrationBean<LilithListener> servletListenerRegistrationBean(){
ServletListenerRegistrationBean<LilithListener> servletListenerRegistrationBean = new ServletListenerRegistrationBean<>();
servletListenerRegistrationBean.setListener(new LilithListener());
return servletListenerRegistrationBean;}
重启应用，查看控制台输出的日志信息
应用启动和关闭时都输出了自定义监听器LilithListener中定义的内容，说明自定义的监听器生效
Spring MVC的前端控制器DispatcherServlet就是通过这种方式来注册的，首先定义了DispatcherServlet类
接着通过DispatcherServletRegistrationBean注册了DispatcherServlet
转载来源：https://juejin.cn/post/7089854261105786910
关于Spring Boot：无法启动嵌入式Tomcat Servlet容器和springboot启动不了tomcat的问题我们已经讲解完毕，感谢您的阅读，如果还想了解更多关于17. Spring Boot 配置嵌入式Servlet容器、4_7.springboot2.x嵌入式servlet容器自动配置原理、4、SpringBoot嵌入式Servlet容器、Spring Boot 2.x 嵌入式 Servlet 容器等相关内容，可以在本站寻找。
本文标签：
![[转帖]Ubuntu 安装 Wine方法（ubuntu如何安装wine）](https://www.gvkun.com/zb_users/cache/thumbs/4c83df0e2303284d68480d1b1378581d-180-120-1.jpg)
